Z3 E36 Z3 1.8 Suction fan and mounting parts

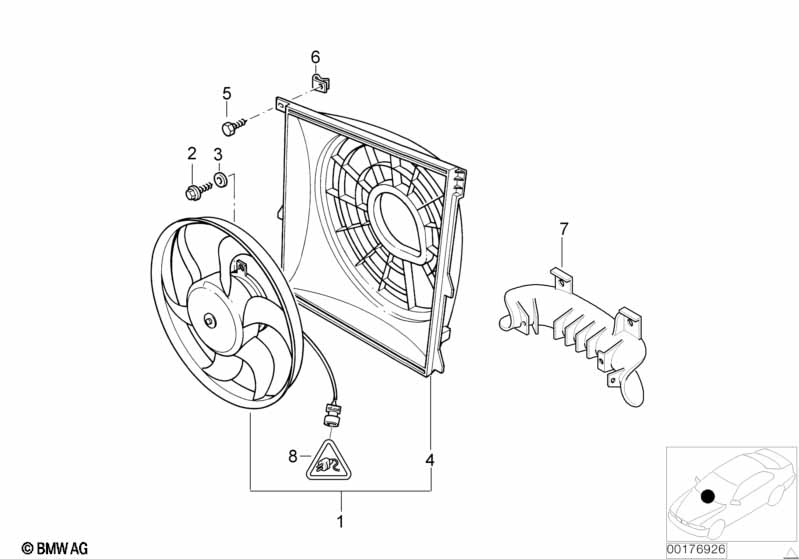

Suction fan and mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important!
Not suitable for retrofit air
conditioning system Economic.
For parts for Economic see EPC
"Acessories Comfort"
01 Suction fan 1 64508372039 $366.18
02 Hex bolt with washer M5X14-Z1 3 06/2002 07119913415 $0.25 ENDED
02 Hex bolt M5X14 3 07119904337 $0.38
03 Washer 5,3-140 HV-ZNS 2 07119936439 $0.40
04 Suction frame 1 64548363741 $72.05
05 Hex head screw ST4,8X16-ZNS3 2 07119901299 $0.25
06 Body nut ST4,8-9-ZNS3 2 07129904150 $0.25
07 Air channel bracket 1 64548369127 $12.85
08 Plug housing 3 POL. 1 61131378410 $1.65
only in conjunction with
-- Snap-in receptacle 2.5 watertight 1,0-2,5 MM² X 61130007442 $5.75
Notes
  • ENDED = the part has been discontinued (no longer available).
