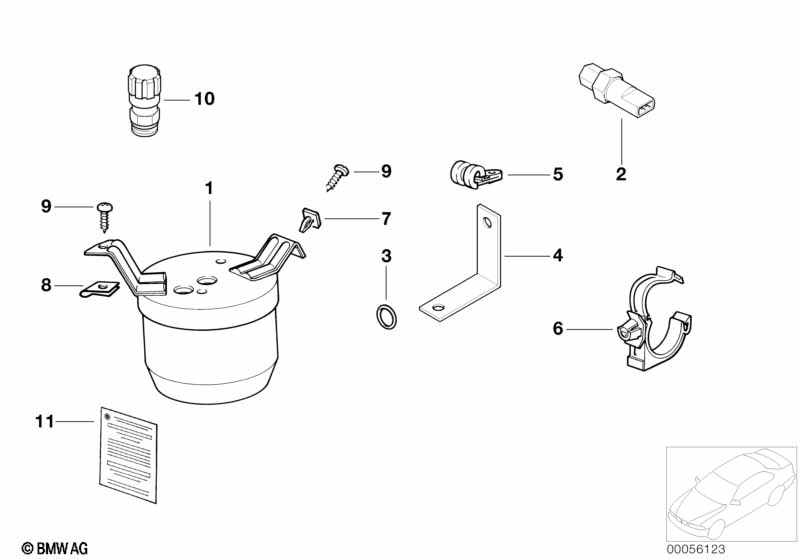

Z3 E36 Z3 1.8 Drying container/small parts

Drying container/small parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drying container 1 09/1998 64538375754 $217.53
02 Safety pressure switch 1 64538362055 $110.43
03 Gasket ring D=11.1MM 1 64508390602 $1.49
05 Pipe clamp D=45MM 1 64531394285 $1.56
06 Bracket suction pipe airconditioner 1 64531394231 $1.42
07 Expanding nut ST 4.8 1 63121374075 $0.23
08 Body nut ST4,8-4 ZNS 1 06/2002 07129901651 $0.18 ENDED
08 Body nut ST 4,8-4-ZNS3 1 07129904224 $0.11
09 Hex head screw ST4,8X16-ZNS3 2 07119901299 $0.25
ONLY APPLIES TO COOLANT R134A
PRESSURE HOSE ASSY
10 Valve insert, pressure line R134A 1 08/2003 64538391215 $9.32 ENDED
10 Valve insert, pressure line R134A 1 64509177577 $10.87
ONLY APPLIES TO COOLANT R134A
SUCTION PIPE
10 Valve insert, suction line R134A 1 64509177579 $10.87
11 Label "air condition" 1 64508391026 $2.07
Notes
  • ENDED = the part has been discontinued (no longer available).
