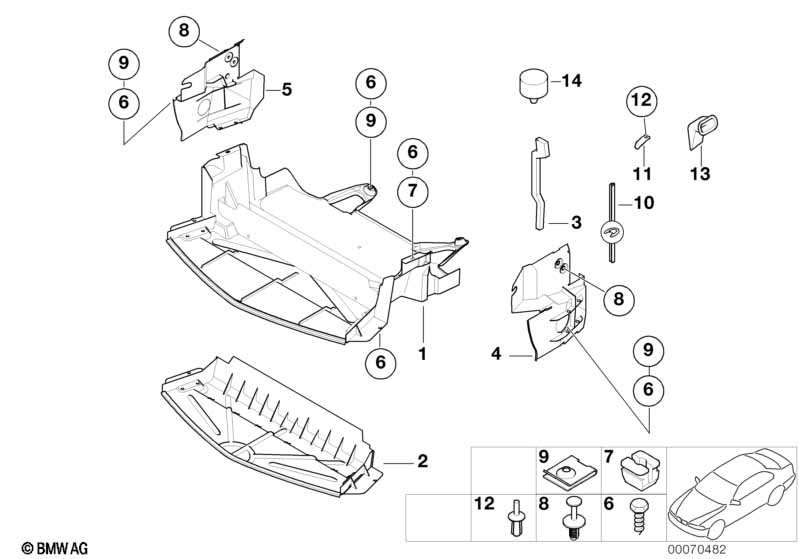

Z3 E36 Z3 2.8 Underhood shield

Underhood shield
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Air duct 1 51718397359 $51.75
03 sealing 1 51718399507 $11.40
03 sealing 1 51718399508 $11.40
In some cases this part must be
modified to fit vehicle.
04 Air duct, left 1 51718397357 $21.87
FOR VEHICLES WITH AND WITHOUT HEADLIGHT
CLEANING SYSTEM
05 Air duct, right 1 51718401824 $21.87
06 Hex head screw ST 4,8X18 SW8 X 07147129161 $0.25
08 Expanding rivet D = 8MM 4 51471911992 $0.40
08 Expanding rivet 3 51118174185 $0.30
09 Body nut ST4,8-4 ZNS 4 06/2002 07129901651 $0.18 ENDED
09 Body nut ST 4,8-4-ZNS3 4 07129904224 $0.11
09 Body nut ST4,8-9-ZNS3 2 07129904150 $0.25
10 Edge protection 1 51728400200 $1.21
14 Stop buffer 2 51718407377 $5.47
Notes
  • ENDED = the part has been discontinued (no longer available).
