Z3 E36 Z3 M Valve Timing Gear - Cam Shaft

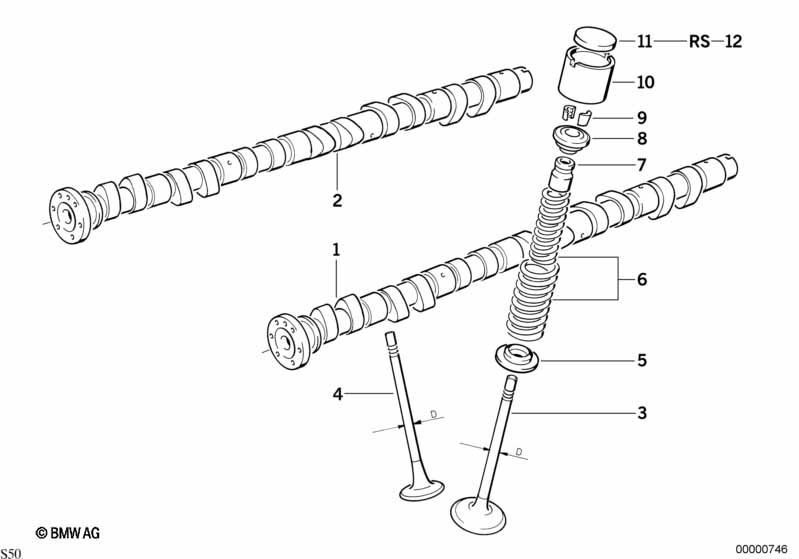

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft 1 11311404803 $952.40 +core
02 Camshaft exhaust 1 11311405577 $920.70 +core
03 Intake valve 35,0/5,97MM X 11341404588 $60.19
04 Exhaust valve 30,5/5,95MM X 11341404589 $177.00
05 Spring pocket X 11341404787 $3.77
06 Set valve spring yellow/red X 11341315912 $22.21
07 Repair kit valve seal ring 2 11349064457 $46.94
08 Upper spring plate X 11341404617 $3.77
09 Valve collet D=6 X 11341461405 $1.34
10 Cam follower X 11341403859 $36.68
11 Plate 3,00 MM X 11321308204 $7.57
11 Plate 3,05 MM X 11321308205 $7.57
11 Plate 3,10 MM X 11321308206 $7.57
11 Plate 3,15 MM X 11321308207 $7.57
11 Plate 3,20 MM X 11321308208 $7.57
11 Plate 3,25 MM X 11321308209 $7.57
11 Plate 3,30 MM X 11321308210 $7.57
11 Plate 3,35 MM X 11321308211 $7.57
11 Plate 3,40 MM X 11321308212 $7.57
11 Plate 3,45 MM X 11321308213 $7.57
11 Plate 3,50 MM X 11321308214 $9.70
11 Plate 3,55 MM X 11321308215 $9.70
11 Plate 3,60 MM X 11321308216 $7.57
11 Plate 3,65 MM X 11321308217 $9.70
11 Plate 3,70 MM X 11321308218 $7.57
11 Plate 3,75 MM X 11321308219 $9.70
11 Plate 3,80 MM X 11321308220 $9.70
11 Plate 3,85 MM X 11321308221 $7.57
11 Plate 3,90 MM X 11321308222 $7.57
11 Plate 3,95 MM X 11321308223 $7.57
11 Plate 4,00 MM X 11321308224 $7.57
11 Plate 4,05 MM X 11321308225 $7.57
11 Plate 4,10 MM X 11321308226 $7.57
11 Plate 4,15 MM X 11321308227 $7.57
11 Plate 4,20 MM X 11321308228 $7.57
11 Plate 4,25 MM X 11321308229 $7.57
11 Plate 2,95 MM X 11341401415 $9.38
11 Plate 2,90 MM X 11341401416 $9.38
11 Plate 2,85 MM X 11341401417 $9.38
11 Plate 2,80 MM X 11341401418 $9.38
11 Plate 2,75 MM X 11341401419 $9.38
11 Plate 2,70 MM X 11341401420 $9.38
11 Plate 2,65 MM X 11341401422 $9.38
11 Plate 2,60 MM X 11341401423 $9.38
11 Plate 2.55 MM X 11341401424 $9.38
11 Plate 2,50 MM X 11341401425 $9.38
11 Plate 2,45 MM X 11341401426 $9.38
11 Plate 2,40 MM X 11341401427 $9.38
11 Plate 2,35 MM X 11341404871 $9.38
11 Plate 2,30 MM X 11341404872 $9.38
11 Plate 2,25 MM X 11341404873 $9.38
11 Plate 2,20 MM X 11341404874 $9.38
11 Plate 2,15 MM X 11341404875 $9.38
11 Plate 2,10 MM X 11341404876 $9.38
11 Plate 2,05 MM X 11341404877 $9.38
11 Plate 2,00 MM X 11341404878 $9.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
