Z3 E36 Z3 M Timing case

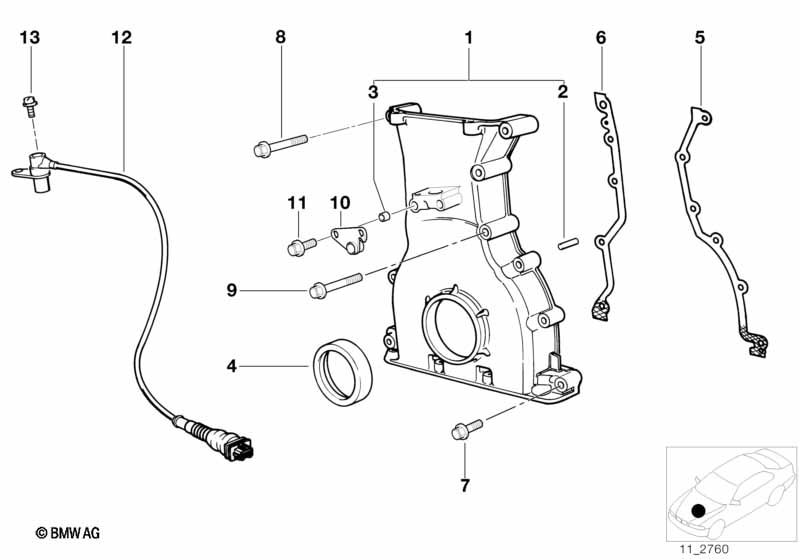

Timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover 1 11141404810 +core
02 Dowel pin 5 H8X14 2 07119942283 $0.85
03 Dowel D=8,5X9MM 2 11121726242 $1.07
04 Shaft seal 48X65X10 1 11141275466 $24.02
05 Gasket left asbesto-free 1 11141318280 $13.25
06 Gasket right asbesto-free 1 11141317289 $4.12
07 Hex bolt with washer M6X35-U1-8.8 7 07119904589 $0.47
08 Hex bolt with washer M6X50-U1-ZNS3 1 07119903862 $0.65 ENDED
08 Hex bolt with washer M6X50-ZNNIV SI 1 07119905377 $0.53
09 Hex bolt with washer M6X55-Z1 3 07119904526 $0.56
10 Engagement dowel support 1 11141404647 $8.60
11 Hex bolt with washer M6X20 2 07119904527 $0.44
12 Speed sensor 1 12141401186 $90.58 +core
13 Fillister-head screw M6X16ZNNIV SI 1 13627545338 $0.47
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
