Z3 E36 Z3 M Oil pan/oil level indicator

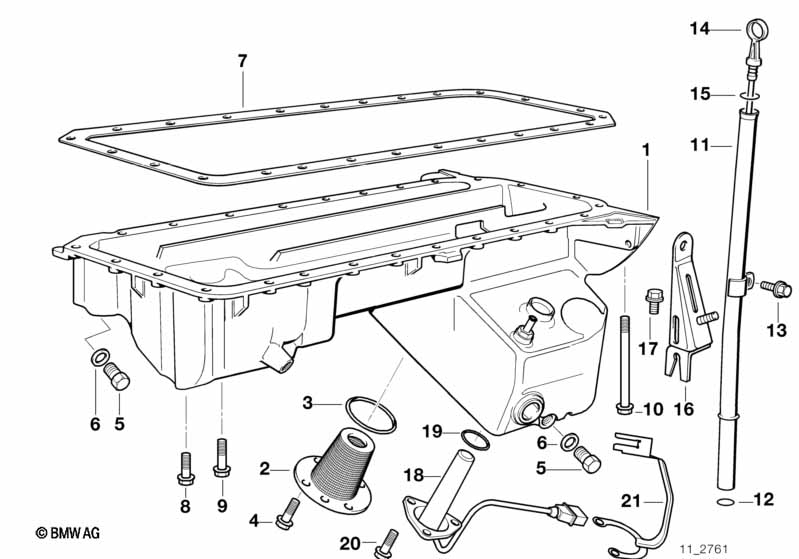

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11131405227 $919.71 +core
02 Cover 1 11131404657 $72.86
03 O-ring D=90MM/3MM 1 33111214144 $2.16
04 Hex bolt with washer M6X16-U1-8.8 6 07119904524 $0.25
05 Screw plug M12X1,5 2 07/2000 11131273093 $3.68 ENDED
05 Screw plug M12X16 2 11137535106 $3.68
06 Gasket ring A12X17-CU 2 07119963151 $0.57
07 Gasket Steel 1 11131437237 $48.50
08 Hex bolt with washer M6X20 X 07119904527 $0.44
09 Hex bolt with washer M6X25-ZNNIV SI 3 07119905400 $0.65
10 Hex bolt with washer M6X95-U1 2 07119905433 $3.35
11 Guide tube 1 11431404746 $40.73
12 O-ring 14,5X3 1 11431287541 $1.19
13 Hex bolt with washer M6X12-U1-8.8 1 07119904517 $0.36
14 Dipstick 1 11431404836 $15.30
15 O-ring 9X2,2 2 11431717666 $0.73
16 Holder 1 11431405235 $8.39
17 Hex bolt with washer M8X12-Z3-1 1 07119913011 $0.47
18 Oil levelling sensor 1 12611406609 $199.15
19 Gasket ring 1 12611744292 $6.42
20 Hex bolt with washer M6X25-ZNNIV SI 3 07119905400 $0.65
21 Bracket for oil levell switch cable 1 12611405402
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
