Z3 E36 Z3 M Front brake pipe, DSC

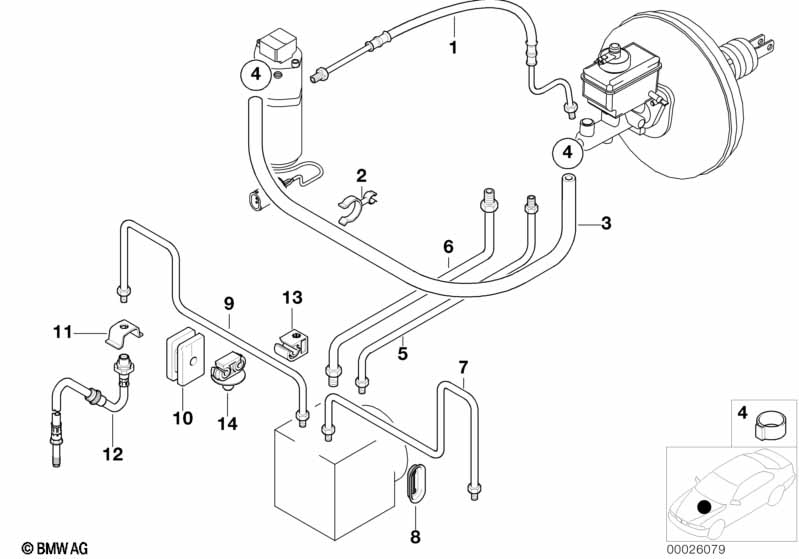

Front brake pipe, DSC
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipeline with pressure hose 1 34536754583 $35.15 +core
02 Hose clamp D=13MM/6MM 1 11781716118 $1.18
03 Hose 7,5X13 X 21521163714 $8.75
04 Hose clamp 12,8-15,3 2 16121180240 $0.77
05 Pipe rubber covered M12/M12 1 34322229897 $30.37
06 Pipe rubber covered M12/M12 1 34322229896 $30.37
07 Pipe M10/M12-963MM 1 34326755308 $10.03
08 Rubber grommet 1 34331161163 $1.53
09 Pipe M10/M10-2252MM 1 34326754845 $17.08
11 Clip 2 34341163565 $0.97
12 Brake hose front 2 34322227381 $54.71
13 Brake pipe bracket 2 34301161567 $0.77 ENDED
13 Brake pipe bracket 2 34326855500
14 Brake pipe bracket 2 34301161568 $1.48
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
