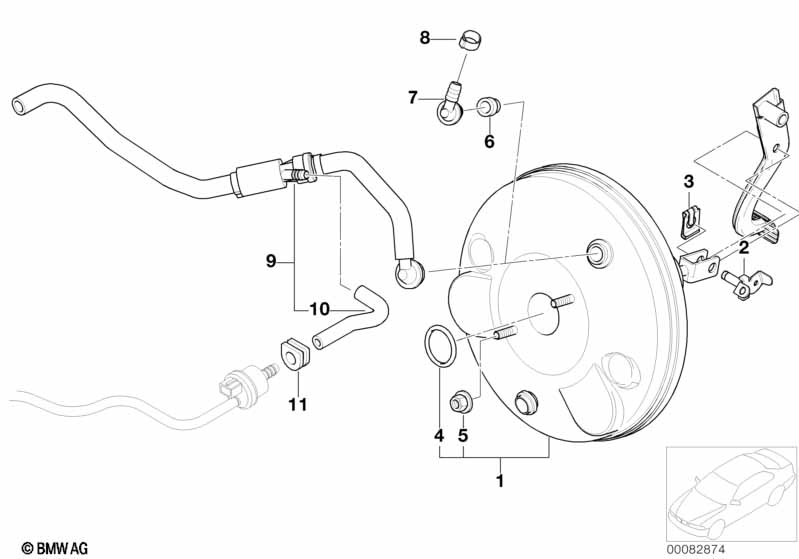

Z3 E36 Z3 M Power brake unit depression
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | VACUUM PIPE REFER TO MAIN GROUP 11 |
||||||||
| 01 | Brake servo unit | 1 | 34332282358 | $326.99 | |||||
| only in conjunction with | |||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | |||||
| 02 | Pin | 1 | 34331158496 | $4.95 | |||||
| 03 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | ||||
| 04 | Brake master cylinder o-ring | 1 | 34311160617 | $4.32 | |||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | ||||
| 06 | Gasket | 1 | 34336765316 | $5.53 | |||||
| 07 | Check valve support | 1 | 34331161300 | $9.38 | |||||
| 08 | Clamp | 3 | 11151726340 | $1.07 | |||||
| 09 | Sucking jet pump with lines | 1 | 11617831473 | $80.42 | +core | ||||
| 10 | Hose elbow | 1 | 11617831464 | $7.70 | |||||
| 11 | Rubber grommet | 1 | 34321164174 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
