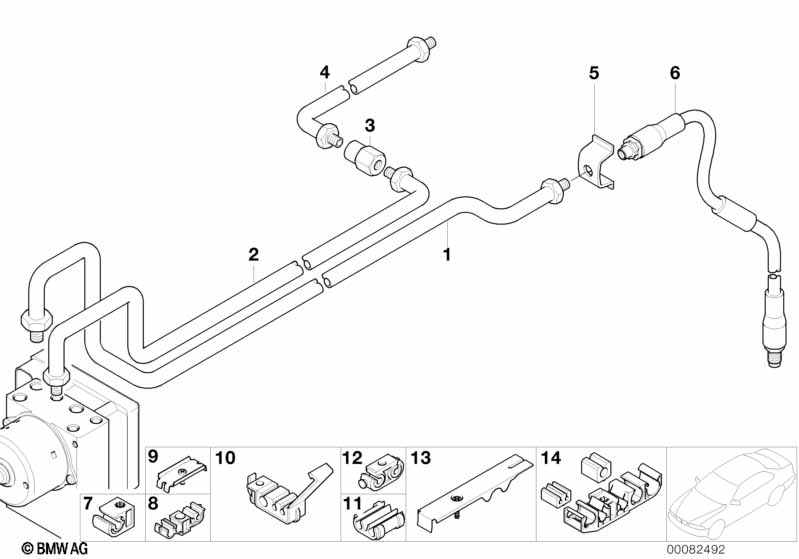

Z3 E36 Z3 M Rear brake pipe DSC

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Pipe	M10/M12-3400MM	1			34326755522	$14.50
02	Pipe	M10/M10-3440MM	1			34406755697	$14.50
03	Intermediate piece	M10X1	1			34321160028	$7.23
04	Pipe	M10/M10-780MM	1			34326755592	$8.65
05	Clip		2			34341163565	$0.97
06	Brake hose rear		2			34322228295	$39.55
07	Brake pipe bracket		1			34301161567	$0.77		ENDED
07	Brake pipe bracket		1			34326855500
08	Brake pipe bracket		2			16122229737	$3.09
09	Bracket		2			16122229738	$2.12
10	Bracket for brake/fuel line, 3-section		1			34306779773	$1.22
11	Spacer holder		1			34321107991	$1.02
12	Brake pipe bracket		4			34301161736	$1.20
13	Holder		2			16121184707	$3.23
14	Tubing support		2			16121184705	$4.47

Notes

• ENDED = the part has been discontinued (no longer available).
