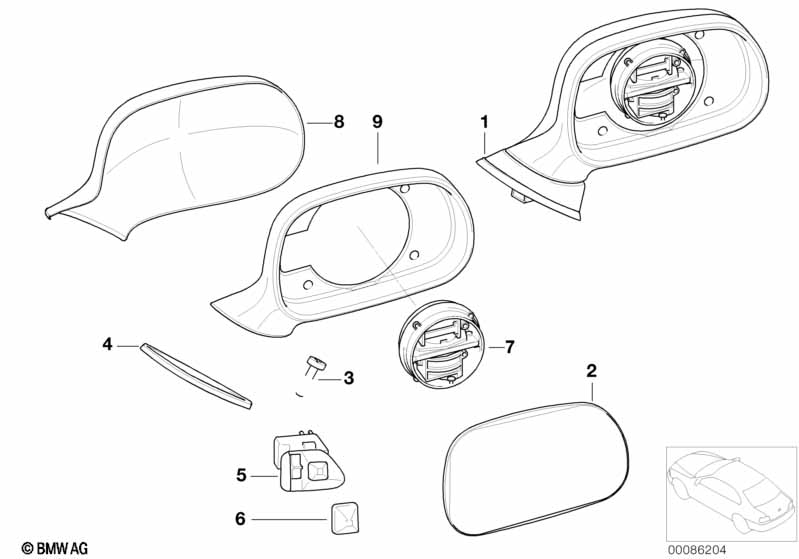

Z3 E36 Z3 1.9 Outside mirror

Outside mirror
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i EXTERIOR MIRROR
WITHOUT
MIRROR GLASS
01 Right primed el.exter.heatable mirror 1 51168397040 $220.97
only in conjunction with
01 Left primed el.exterior heatable mirror 1 51168397041 $220.97
only in conjunction with
-- Screw self-tapping M6X14 Z1 1 51168220001 $3.81
01 Right painted el.exter.heatable mirror CODE - UNI/MET. 1 51169069796 +core
only in conjunction with
01 Left painted el.exterior heatable mirror CODE - UNI/MET. 1 51169069797 ENDED, +core
only in conjunction with
-- Screw self-tapping M6X14 Z1 1 51168220001 $3.81
When ordering indicate color code
ONLY APPLIES TO CO-DRIVERS SIDE
02 Convex mirror glass 1 51168397879 $71.67
ONLY APPLIES TO DRIVER'S SIDE
02 Mirror glass plane 1 51168397878
For vehicles with
National version japan
ONLY APPLIES TO CO-DRIVERS SIDE

L807A=Yes
02 Convex mirror glass 1 51168397880 $71.67
For vehicles with
National version japan
ONLY APPLIES TO DRIVER'S SIDE

L807A=Yes
02 Convex mirror glass 1 51168397879 $71.67
03 Fillister-head screw M5X25 4 07119919959 $0.60
04 Gasket left 1 51167001039
04 Gasket right 1 51167001040
05 Mirror switch with change-over switch 1 61311378847 $67.34
06 Knob, switch exterior mirror 1 61311372463 $3.20
07 Drive 1 51161394107 $56.07
08 Mirror housing, primed, left 1 51168413515 $55.72
08 Mirror housing, primed, right 1 51168413516 $55.72
08 Mirror housing, painted, left CODE - UNI/MET. 1 51160016542 $178.11 ENDED
When ordering indicate color code
08 Mirror housing, painted, right CODE - UNI/MET. 1 51160016543 ENDED
When ordering indicate color code
09 Support.ring,outside mirror,primed,left 1 51168413517 $109.07
09 Support.ring,outside mirror,primed,right 1 51168413518 $109.07
09 Support.ring,outside mirror,painted left CODE - UNI/MET. 1 51160016544 +core
When ordering indicate color code
09 Support.ring,outside mirror,painted rght CODE - UNI/MET. 1 51160016545 +core
When ordering indicate color code
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
