Z3 E36 Z3 M Power brake unit depression

Power brake unit depression

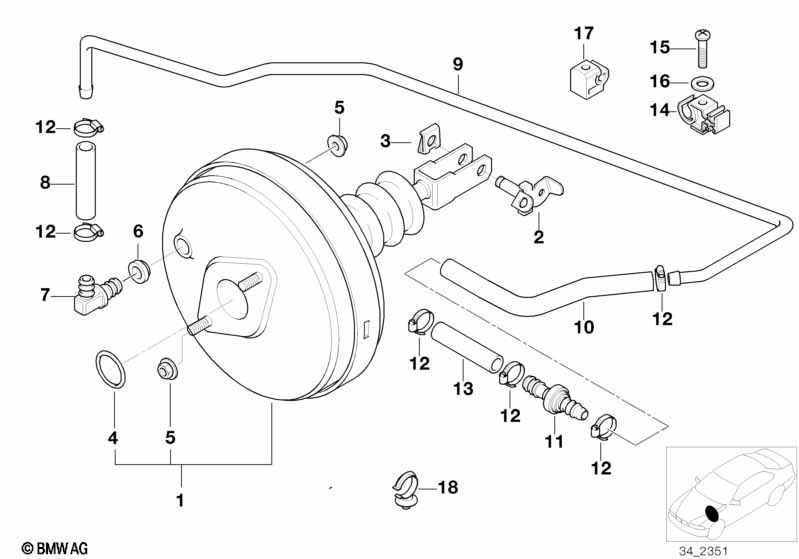

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Lucas Girling
01 Brake servo unit 1 34332228094
02 Pin 1 34331158496 $4.95
03 Fuse B10-ZNS3 1 07129904567 $0.40
04 Brake master cylinder o-ring 1 34311159007 $3.15
05 Self-locking hex nut M8-8-ZNNI SI 6 07129906196 $1.60
06 Gasket ring 1 34331158929 $3.15
07 T-Connector 1 34331113652 $2.50
08 Hose 1 34332228716 ENDED, +core
09 Vacuum pipe 1 34331164318 +core
10 Hose 1 34332228717 +core
11 non-return valve 1 10/2012 34331154581 $31.43 ENDED
11 non-return valve 1 34331151534
12 Hose clamp L18-24 6 07129952109 $1.07
13 Vacuum hose 12X19 X 34331115926 $28.71 +core
18 Cable holder D=16,8MM 2 12521276147 $0.58
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
