Z3 E36 Z3 M Throttle Housing Assy

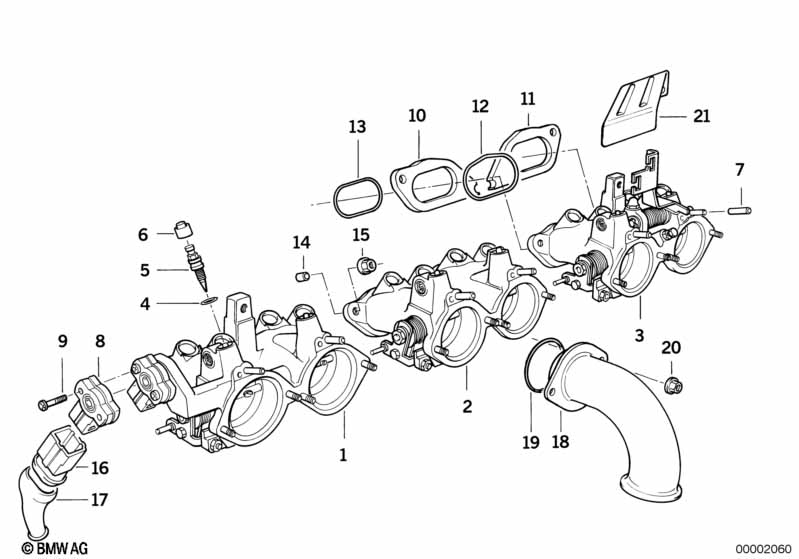

Throttle Housing Assy
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Throttle Housing Assy ZYL.1+2 1 13541406468 $695.42 +core
02 Throttle Housing Assy ZYL.3+4 1 13541406469 +core
03 Throttle Housing Assy ZYL.5+6 1 13541406470 $695.42 +core
04 O-ring 9,25X1,78/FPM 6 17211742635 $0.80
05 Throttle screw 6 13541402664
06 Cap 6 13541402853 $4.42
For vehicles with
National version south africa

L824A=Yes
07 Cap D=3,5MM 1 11611437560 $3.39
08 Throttle valve switch 4 KOHM 1 13637840383 $96.25
09 Fillister head screw M4X2,5 2 13541726918 $5.50
12 O-ring 6 13541401297 $3.11
14 Dowel D=9,5MM 6 11121713264 $3.48
15 Hex nut with plate AM7 ZNNIV SI 9 07129905541 $0.64
16 Plug housing 1 12521706096 $7.59
17 Protection cap L=17,5MM 1 61131358603 $5.32
18 Funnel ZYL.1/3 2 13541404637 $53.12 +core
18 Funnel ZYL.5 1 13541404638 $53.12 +core
18 Funnel ZYL.2/4/6 3 13541404639 $53.12
19 O-ring 6 13541317845 $1.25
20 Cap nut M6 X 11121401517 $4.50
21 Cover 1 13541405382 $10.71
Notes
  • +core = plus core charge (possibility of a return of the old part)
