Z3 E36 Z3 M Fixed steering column tube

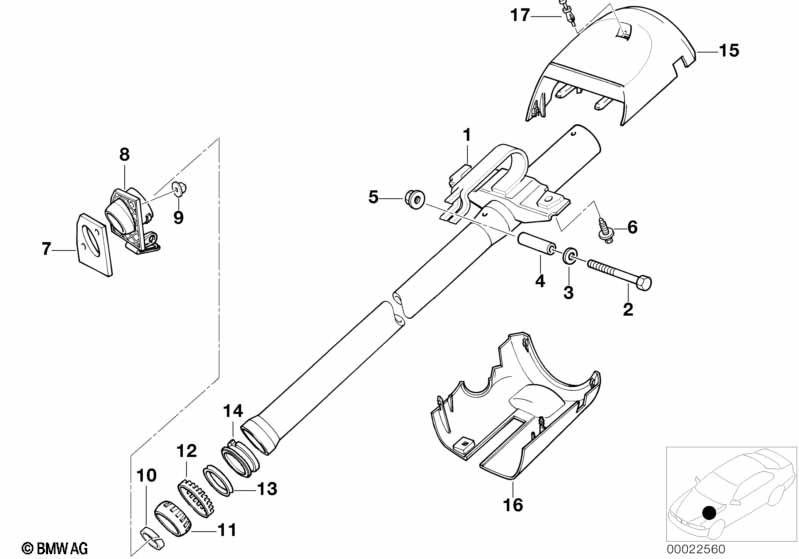

Fixed steering column tube
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Steering column tube 1 32311093963 $71.10 +core
02 Hex bolt M8X80 1 07119912558 $2.89
03 Washer A8,4-200 1 06/2002 07119900052 $0.11 ENDED
03 Washer 8,4X16X1,6-ZNNV 1 07119907030
04 Spacer bush 1 32311161882 $6.95
05 Self-locking hex nut M8-8-ZNNI SI 1 07129906196 $1.60
06 Fracture bolt M8X25 9.8 2 32311160255 $1.81
07 Gasket 1 32311159766 $1.52
08 Housing 1 32311159760 $10.59
09 Self-locking collar nut M8-10 ZNS3 2 07119905374
10 Ring 1 32311092849 $3.40
11 Joint link ball 1 32311092847 $1.77
12 Joint link pan 1 32311159764 $1.68
13 Rubber Ring 1 32311159763 $1.12
14 Lock 1 32311159761 $1.82
15 Trim panel upper part 1 32311091698 $18.00
16 Lower trim panel 1 32311093274 $14.00
17 Clamp 3 51131885399 $0.35
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
