Z3 E36 Z3 M Front brake pipe ASC

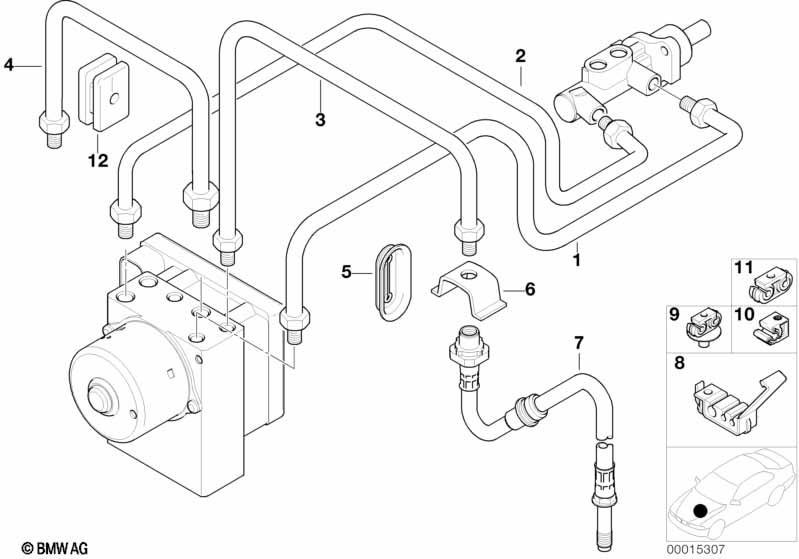

Front brake pipe ASC
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe rubber covered M10/M12 1 34326754594 $40.88
02 Pipe rubber covered M12/M12 1 34326754596 $56.08
03 Pipe M10/M12-1149MM 1 34326754598 $14.82
04 Pipe M10/M10-2630MM 1 34326754599 $23.30
05 Rubber grommet 1 34331161163 $1.53
06 Clip 2 34341163565 $0.97
07 Brake hose front 2 34322227381 $54.71
08 Bracket for brake/fuel line, 3-section 2 34306779773 $1.22
09 Brake pipe bracket 2 34301161568 $1.48
10 Brake pipe bracket 2 34301161567 $0.77 ENDED
10 Brake pipe bracket 2 34326855500
11 Brake pipe bracket 1 34301161736 $1.20
12 Rubber grommet 1 34321164178 $1.50
Notes
  • ENDED = the part has been discontinued (no longer available).
