Z3 E36 Z3 M Rear brake pipe ASC

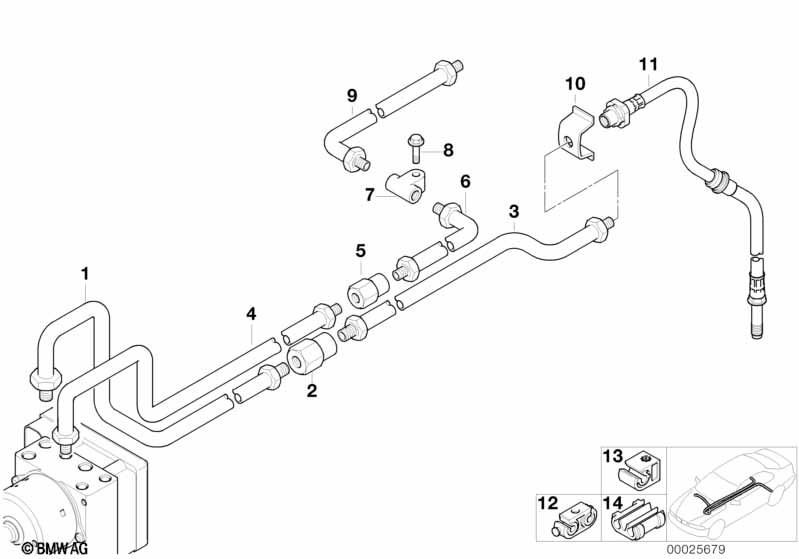

Rear brake pipe ASC
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe M12/M12-151MM 1 34326754600 $10.13
02 Intermediate piece M12X1 1 34326757285 $4.08
03 Pipe M10/M12-3045MM 1 34326754602 $24.45
04 Pipe M10/M10-229MM 1 34326754601 $6.27
05 Intermediate piece M10X1 1 34326757282 $4.08
06 Pipe M10/M10-3056MM 1 34326754603 $32.87 +core
07 Intermediate piece M10X1 1 34321160028 $7.23
08 Hex bolt with washer M6X25-Z3 1 07119915046 $0.47
09 Pipe M10/M10-751MM 1 34326755591 $8.65
10 Clip 2 34341163565 $0.97
11 Brake hose rear 2 34322228295 $39.55
12 Brake pipe bracket 3 34301161736 $1.20
13 Brake pipe bracket 1 34301161567 $0.77 ENDED
13 Brake pipe bracket 1 34326855500
14 Spacer holder 1 34321107991 $1.02
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
