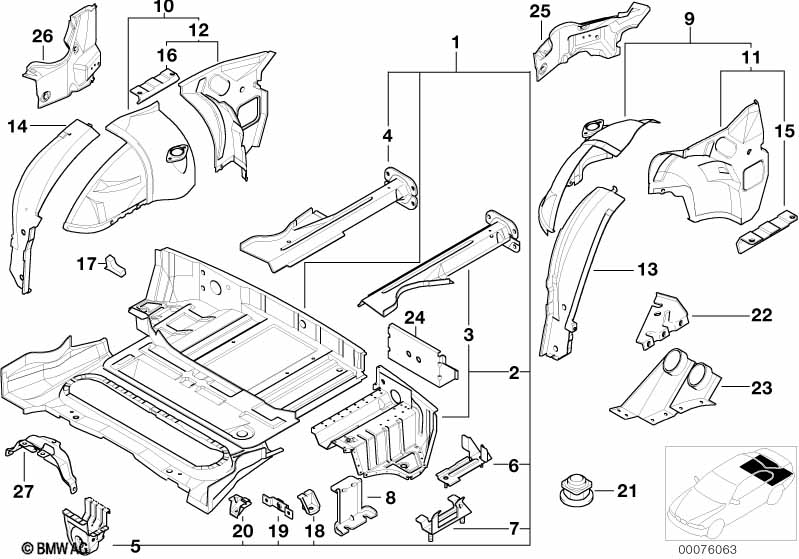

Z3 E36 Z3 M Floor panel trunk/wheel housing rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | 1 | 41122489960 | $2586.26 | |||||
| 02 | Floor panel trunk lateral | 1 | 41118413226 | $166.34 | |||||
| 03 | Rear left side member | 1 | 41118413225 | $166.57 | |||||
| 04 | Right rear side member | 1 | 41118398700 | $166.57 | |||||
| 05 | Gearbox suspension | 1 | 41118398664 | $21.57 | |||||
| 05 | Repair part, insert, rear axle support | 1 | 41117033491 | $344.90 | |||||
| 06 | Left interior rear silencer bracket | 1 | 41122269461 | $11.63 | |||||
| 06 | Right interior rear silencer bracket | 1 | 41122269462 | $13.68 | |||||
| 07 | Exterior left rear silencer bracket | 1 | 41122269463 | $14.52 | |||||
| 07 | Exterior right rear silencer bracket | 1 | 41122269468 | $18.40 | |||||
| For vehicles with Alarm system |
S302A=Yes |
||||||||
| 08 | Inclination indicator bracket | 1 | 61008398549 | $4.33 | |||||
| 09 | Left rear inner wheelhouse | 1 | 41148400015 | $336.70 | |||||
| 10 | Right rear inner wheelhouse | 1 | 41148413444 | $336.70 | |||||
| 11 | Left rear inner wheelhouse | 1 | 41148400035 | $119.06 | |||||
| 12 | Right rear inner wheelhouse | 1 | 41148413380 | $135.52 | |||||
| 15 | Fender bracket | 1 | 41358400219 | $3.23 | |||||
| 16 | Fender bracket | 1 | 41358400219 | $3.23 | |||||
| 17 | Moulded part f rear wheel housing | 2 | 41148398748 | $3.73 | |||||
| 18 | Brake pipe bracket | 2 | 41112491301 | $10.13 | |||||
| 19 | Aggregate support bracket | 1 | 41121904970 | $1.90 | |||||
| 20 | Stabilizer support | 2 | 41112491300 | $5.38 | |||||
| 21 | Earth pin | M6X12 | X | 08/2001 | 41118367249 | $1.85 | ENDED | ||
| 21 | Earth pin | M6X12 | X | 41248185432 | |||||
| 21 | Earth pin | M8X12 | X | 05/2002 | 41118176577 | $1.68 | ENDED | ||
| 21 | Earth pin | M8X12 | X | 07147182215 | |||||
| 24 | Center latching bracket support | 1 | 41128411087 | $8.35 | |||||
| 25 | Reinforcement wheelhousing left | 1 | 41148413703 | $37.51 | |||||
| 26 | Reinforcement wheelhousing right | 1 | 41148413704 | $37.51 | |||||
| 27 | Bracket f shifting arm bearing | 1 | 41128246251 | $3.23 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
