Z3 E36 Z3 M Single components for body-side frame

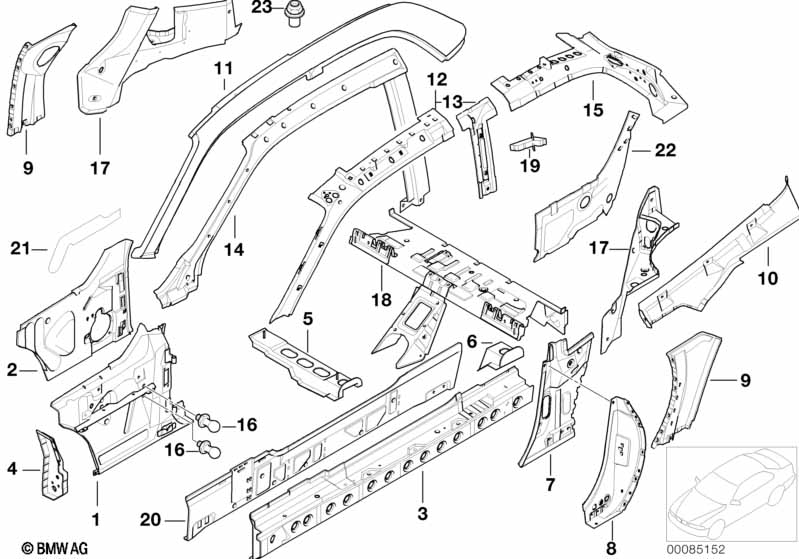

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left exterior column A 1 41218410411 $544.60
01 Column A exterior right 1 41218410412 $544.60
02 Left interior column A 1 41218398677 $326.38
02 Right interior column A 1 41218398678 $326.38
03 Interior left entrance 1 41218413403 $450.42
03 Interior right entrance 1 41218413404 $450.42
04 Covering plate column front left 1 41218398645 $7.67
04 Covering plate column front right 1 41218398646 $7.67
05 Cross member left 1 41128398623 $75.43
05 Cross member right 1 41128398624 $75.43 +core
06 Left rear seat console 1 41128398625 $10.81
06 Right rear seat console 1 41128398626 $10.81
07 Interior left column B 1 41218400017 $204.46
07 Column B inside right 1 41218400018 $204.46
08 Exterior left column B 1 41218398643 $44.53
08 Exterior right column B 1 41218398644 $44.53
09 Left exterior lateral part EXTENSION 1 41218400027 $44.53
09 Right exterior lateral part EXTENSION 1 41218400028 $44.53
10 Upper left exterior lateral part 1 41218400039 $56.93
10 Upper right exterior lateral part 1 41218400040 $56.93
11 Left outer roof frame panel 1 41218400021 $664.02
11 Right outer roof frame panel 1 41218400022 $821.34
12 Left interior roof frame 1 41218400781 $520.06
12 Right interior roof frame 1 41218400782 $520.06
13 Left upper column B reinforcement 1 41218400785 $251.57
13 Right upper column B reinforcement 1 41218400786 $197.53
14 LEFT front INTERIOR ROOF FRAME 1 41318400041 $294.57
14 Right front INTERIOR ROOF FRAME 1 41318400042
15 Left rear interior roof frame 1 41318400019 $163.21
15 Right REAR INTERIOR ROOF FRAME 1 41318400020
16 Ball pin M8 4 41218398702 $3.40
17 Spacer ring for rear axle rear left 1 41118413409 $238.14
17 Spacer ring for rear axle rear right 1 41118413514 $238.14
18 Partition trunk 1 41138400784 $499.16
19 Moulded part column B 2 41218399207 $3.40
20 Left side member 1 41118413381 $125.37
20 Right side member 1 41118413382 $125.37
21 Left protection foil 1 51148410661 $4.75
21 Right protection foil 1 51148410662 $4.75
22 Reinforcement column B inside left 1 41218413385 $46.18
22 Reinforcement column B inside right 1 41218413386 $46.18
23 Threaded plug M10/M6 4 41318199941 $3.48
Notes
  • +core = plus core charge (possibility of a return of the old part)
