Z3 E36 Z3 M M Outside mirror

M Outside mirror

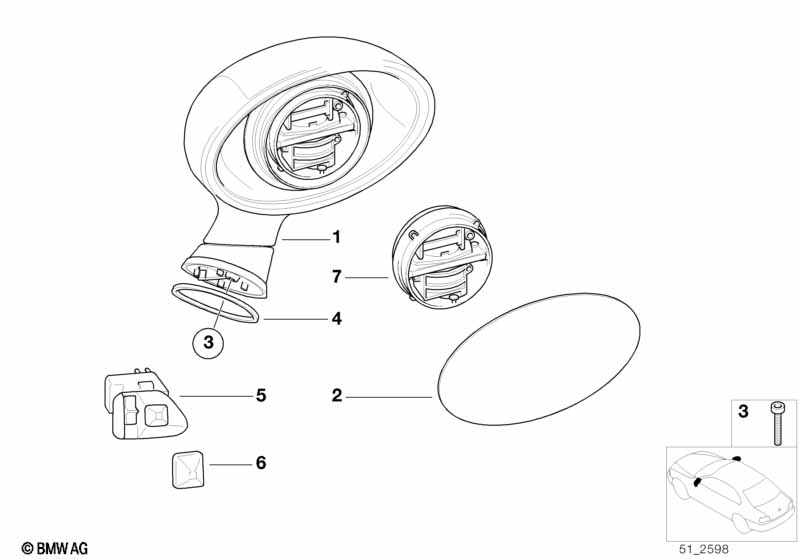

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left primed el.exterior heatable mirror 1 51162492933 $287.37
only in conjunction with
01 Right primed el.exter.heatable mirror 1 51162492934 $287.37
only in conjunction with
-- Screw self-tapping M6X14 Z1 3 51168220001 $3.81
01 Left painted el.exterior heatable mirror CODE - UNI/MET. 1 51169070978 $358.24 ENDED
only in conjunction with
01 Right painted el.exter.heatable mirror CODE - UNI/MET. 1 51169070979 $358.24 ENDED
only in conjunction with
-- Screw self-tapping M6X14 Z1 3 51168220001 $3.81
When ordering indicate color code
ONLY APPLIES TO DRIVER'S SIDE
02 Mirror glass plane 1 51162492929 $49.43
ONLY APPLIES TO CO-DRIVERS SIDE
02 Convex mirror glass 1 51162693066 $71.67
03 Fillister-head screw M5X30 4 08/1998 07119919619 $0.50 ENDED
03 Fillister-head screw M5X25 4 07119919959 $0.60
04 Gasket left 1 51168400297 $6.45
04 Gasket right 1 51168400298 $6.45
05 Mirror switch with change-over switch 1 61311378847 $67.34
06 Button 1 61311383335 $3.62
07 Drive 2 51161394107 $56.07
Notes
  • ENDED = the part has been discontinued (no longer available).
