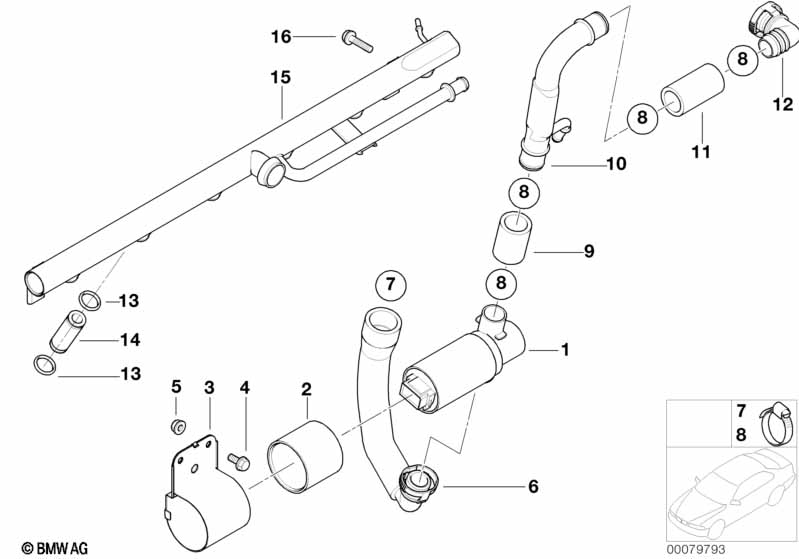

Z3 E36 Z3 M Idle regul.valve/additional air line

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	T-shape idle regulating valve		1			13411733090	$335.12
02	Damper rubber		1			13417831443	$6.27
03	Bracket idle adjuster		1			13417831425	$11.00
04	Hex bolt with washer	M6X12-U1-8.8	1			07119904517	$0.36
05	Hex nut with plate	AM6-8-ZNNIV SI	2			07129904553	$0.64
06	Hose elbow		1			13417837597	$44.35		+core
07	Hose clamp		1			13417831794	$0.97
08	Hose clamp		4			13417831793	$0.85
09	Hose assy		1			13417837653	$7.25		+core
10	Air tube		1			13417836093	$30.05
11	Hose assy		1			13417837655	$8.52		+core
12	Quick-release coupling		1			13417831803	$4.38
13	O-ring		12			13417830384	$1.25
14	Connection pipe		6			13417839843	$7.50
15	Additional air line		1			13547831481	$177.97
16	Hex bolt with washer	M6X25-ZNNIV SI	2			07119905400	$0.65

Notes

• +core = plus core charge (possibility of a return of the old part)
