5' E28 535i Upper timing case

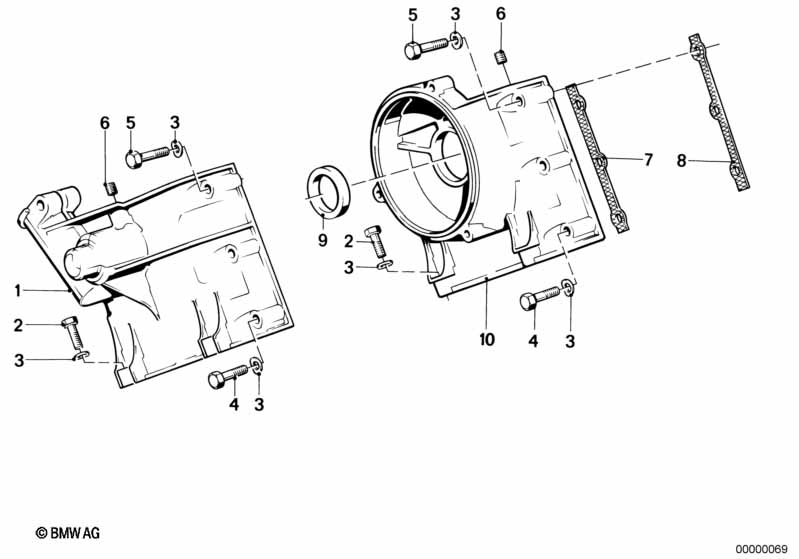

Upper timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Hex bolt M6X25 2 07119913589 $0.62
03 Wave washer B6 8 07119932099 $0.38
03 Wave washer B6-ZNS3 8 07119904496 $1.78 ENDED
04 Hex bolt M6X35 4 05/1988 07119901189 $0.60 ENDED
04 Hex bolt M6X35-8.8-ZNS3 4 07119902998 $0.38
05 Hex bolt M6X40 2 07119912310 $0.43
06 Threaded plug M6 1 11121744337 $1.68
07 Gasket left asbesto-free 1 11141726729 $1.71
08 Gasket right asbesto-free 1 11141726727 $1.71
09 Shaft seal 28X40X7 1 11141271415 $13.15 ENDED
09 Shaft seal 28X40X7 1 11141709060
10 Timing case cover, top 1 11141277001 $161.65
Notes
  • ENDED = the part has been discontinued (no longer available).
