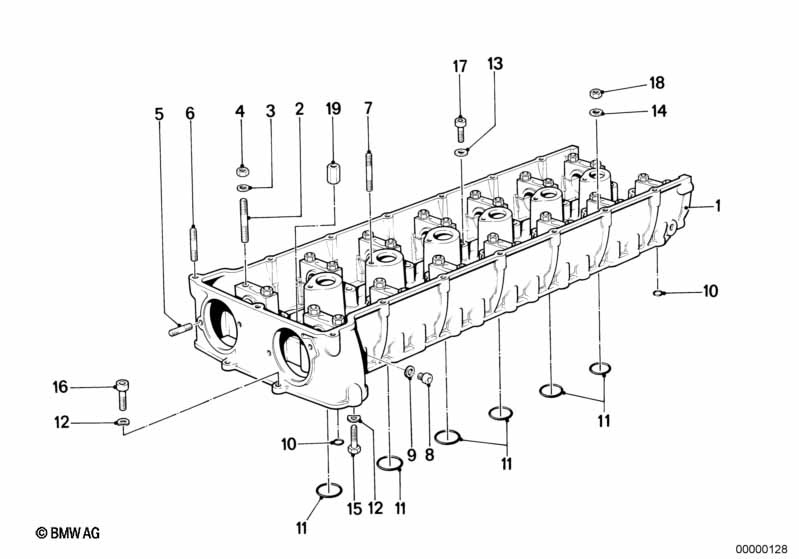

5' E28 M5 Cylinder head/intermediate housing

Cylinder head/intermediate housing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Housing 1 11121309088 $2700.72 +core
02 Stud bolt M8X55 X 07129908137 $0.47
03 Washer 8,4 X 07119931697 $0.40
04 Hex nut M8-ZNS X 07119922856 $0.56 ENDED
04 Hex nut M8-8-ZNS3 X 10/1987 07119904032 $0.16
04 Hex nut M8-8-ZNNIV SI X 07119905515 $0.16
05 Stud bolt M6X25-ZN 4 07129908100 $0.20
06 Stud bolt M6X35-ZN X 07129908103 $0.25
07 Stud bolt M6X45 7 07129908105 $0.82
08 Screw plug M10X1 1 10/1987 07119919112 $1.17 ENDED
08 Screw plug M10X1-ST-ZNS3 1 07119904393 $1.89
09 Gasket ring A10X13,5-AL 1 07119963073 $0.11
10 O-ring 12X1,5 2 11121304173 $2.21
11 O-ring 28X2 6 11121304174 $3.25
12 Wave washer B6 4 07119932099 $0.38
12 Wave washer B6-ZNS3 4 07119904496 $1.78 ENDED
14 Washer 8,4 X 07119931697 $0.40
15 Hex bolt M6X30 2 07119913575 $0.20 ENDED
15 Hex bolt M6X30-8.8-ZNS3 2 07119904116 $0.38
16 Fillister-head screw M6X20 2 10/1987 07119919967 $0.24 ENDED
16 ISA screw M6X20-8.8-ZNNIV 2 07129901130 $0.38
16 Fillister-head screw M6X30 1 11121307145 $4.68
17 Fillister head with washer M7X30-Z1 X 11121312307 $1.62
18 Hex nut M8-ZNS X 07119922856 $0.56 ENDED
18 Hex nut M8-8-ZNS3 X 10/1987 07119904032 $0.16
18 Hex nut M8-8-ZNNIV SI X 07119905515 $0.16
19 Hex nut M8-Z1 X 11121312308 $4.68
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
