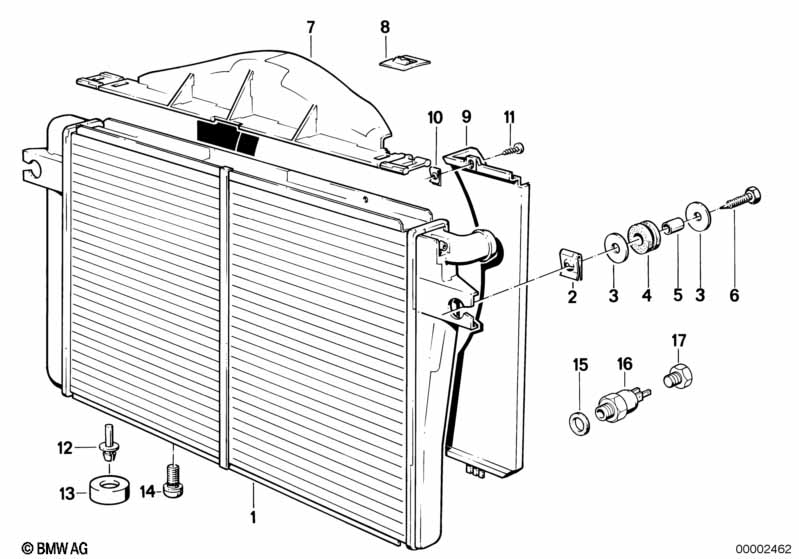

5' E28 M5 Radiator/frame

Radiator/frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Radiator 1 17112226018 $566.70
02 Body nut ST6,3-1-ZNS3 2 07129904231
03 Washer 7X29X2 4 51436440260 $0.39
04 Rubber grommet 2 17111707877 $0.95 ENDED
04 Rubber grommet 2 17111117442 $1.27
05 Spacer bush 2 17111176421 $0.61 ENDED
06 Hex head screw ST6,3X50-C 2 07119916842 $0.42 ENDED
06 Hex head screw ST6,3X38-C 2 07119916886 $0.96
07 Cover 1 17111153348 $8.15
08 Clamping spring 2 17111176098 $0.35
09 Fan shroud 1 17111712240 $27.09
10 Body nut ST4,2-2 2 07129904245 $0.25
11 Fillister head self-tapping screw ST4,2X13-Z2 2 07119907939 $0.11
12 Expanding rivet 2 17111150983 $0.65
13 Rubber Mounting 2 17111150984 $2.74
14 Drain plug radiator M10 1 17111719384 $7.57
15 Gasket ring A14X20-CUAS 1 07119963244 $0.41
16 Double temperature switch 91/99CEL 1 61311378073 $32.46 SI 120787(777)
17 Screw plug AM14X1,5 1 07119919228 $0.85
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
