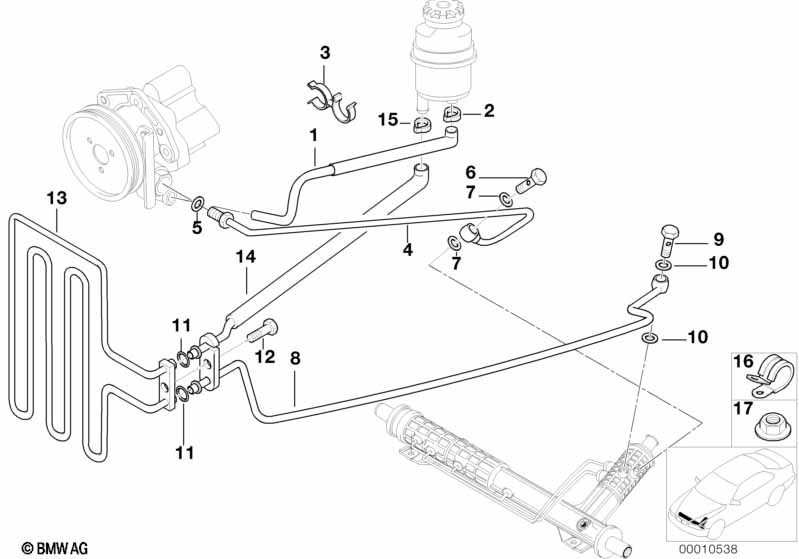

5' E39 528i Hydro steering-oil pipes

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 32411095526 $32.68
02 Hose clamp D=20,9-24,1 2 32111131345 $2.12
03 Hose clamp 1 09/1998 64216904030 $1.10
04 Pressure hose assy LHD 1 09/1998 32411094841 $267.67 +core
04 Pressure hose assy 1 09/1998 32411096731
05 Gasket ring D=7,65MM 1 64508390601 $1.93
06 Banjo bolt with check valve M14X1,5X27,4 1 32416781261 $10.02
07 Gasket ring A14X20-CUSN 2 32411093596 $0.31
08 Return pipe LHD 1 32411093149 $76.31
09 Hollow bolt M16X28 1 02/2012 32416783887 $3.98 ENDED
09 Hollow bolt M16X28 1 32416852470
10 Gasket ring A16X22-CUSN 2 32411093597 $0.27
11 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
12 Hex bolt with washer M8X30-Z3 1 09/1998 07119915085 $0.62
12 Screw M8X28-Z3 1 09/1998 06/2000 17227555715 $0.78
12 Hex bolt with washer M8X30-Z3 1 09/1998 07119915085 $0.62
13 Cooling coil 1 17111141819 $107.30
14 radiator return line 1 32411094306 $41.26
15 Hose clamp D=16,6-20MM 1 16121180242 $1.08
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
