5' E39 528i Tire pressure control (RDC) - ctrl unit

Tire pressure control (RDC) - ctrl unit

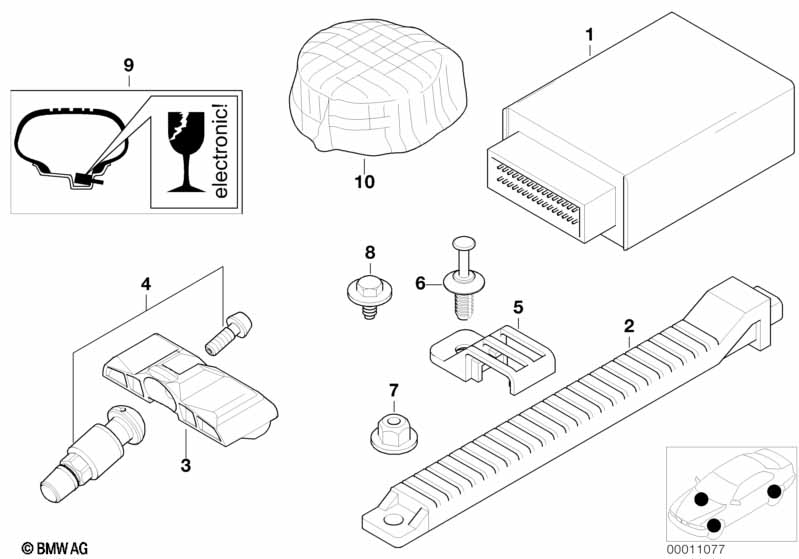

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Control unit RDC 315MHZ 1 08/1998 03/2002 36146759022 $256.94 +core
01 Control unit RDC 433MHZ 1 03/2002 36146759023 $256.94
02 Reception antenna RDC 315MHZ 4 08/1998 03/2002 36146758601 $40.53 +core
02 Reception antenna RDC 433MHZ 4 03/2002 36118378753 $40.53
for application, see illustration BMW
LA wheels
04 Screw-in valve RDC ORANGE 4 08/1998 36146792827 $13.90
04 Screw-in valve RDC SCHWARZ 4 08/1998 36146792828 $13.90
04 Screw-in valve RDC 4 08/1998 36146792829 $13.90
04 Screw-in valve RDC GRÜN 4 08/1998 36146792830
05 Holder, reception antenna RDC 4 08/1998 36111095366 $1.95
06 Expanding rivet D = 6MM 1 08/1998 51111908077 $0.30
07 Cap nut M5 6 08/1998 51711934930 $0.23
08 Hex bolt TS5X17 SW8 D=16 2 08/1998 07149126885 $0.49
09 sign "TPC" tire pressure control 4 08/1998 36111096235 $0.78
10 "RDC" protective cover for tyres 15" - 17" 4 08/1998 36139416536 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
