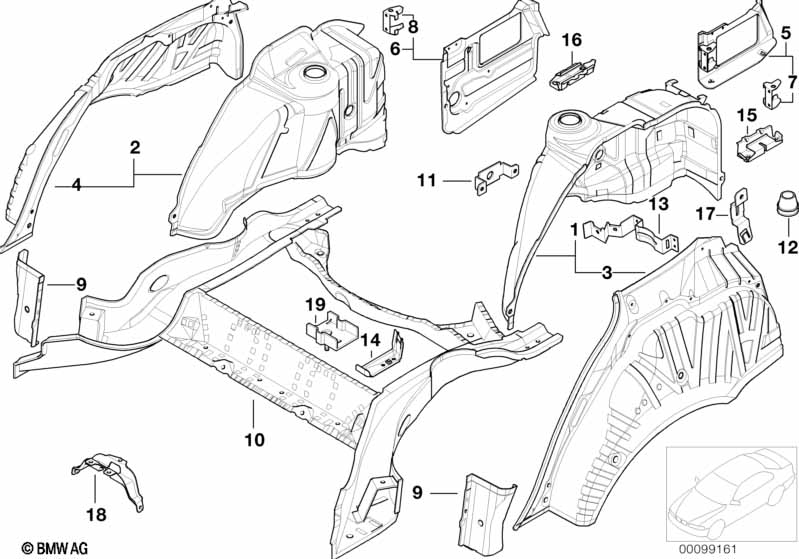

5' E39 528i Rear wheelhouse/floor parts

Rear wheelhouse/floor parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear left wheelhouse BASIS 1 09/1996 41148208919 $407.54
only in conjunction with
-- Bracket activated Carbon container 1 09/1996 41148157606 $2.82 ENDED
01 Rear left wheelhouse BASIS 1 09/1996 41148208919 $407.54
02 Rear right wheelhouse BASIS 1 41148208920 $407.54
03 Wheel arch outer rear left 1 41148209469 $170.62
04 Wheel arch outer rear right 1 41148209470 $170.62
05 Wheelhouse extension, left 1 41148208921 $25.05
06 Wheelhouse extension, right 1 41148208922 $31.02
07 Bracket f left rear lateral bumper 1 41148209473 $3.08
08 Bracket f right rear lateral bumper 1 41148209474 $3.08
09 Covering plate left 1 41148209471 $13.68
09 Covering plate right 1 41148209472 $13.68
10 Rear axle carrier 1 41118209453 $1245.06 ENDED
11 Support f lateral upholstery 2 41148232114 $4.33
13 Bracket activated Carbon container 1 09/1996 41148157606 $2.82 ENDED
14 Rear silencer bracket 1 41118165621 $3.85
For vehicles with
Tyre pressure control (TPC)

S265A=Yes
17 Holder antenna RDC 2 41148238713 $4.33
18 Bracket f shifting arm bearing 1 41128246251 $3.23
Notes
  • ENDED = the part has been discontinued (no longer available).
