5' E39 528i Individual series Japan, KA173, part 2

Individual series Japan, KA173, part 2

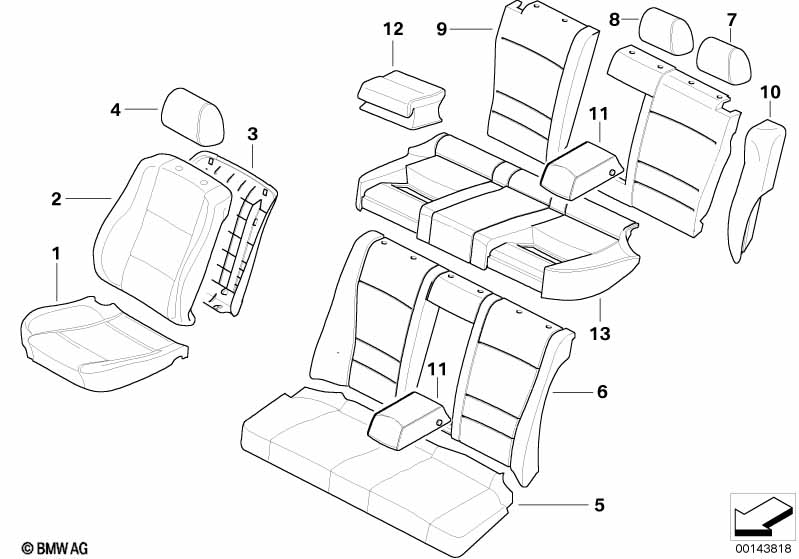

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to
individual vehicles with upholstery
code Z1XX
or
SA 940 = option in general
---------------------------
Variant 1:
- Leather, felted nappa, cinnamon
Trim parts:
- Seats, trim piece for center console
with contrast quilting in black:
- Door trim panels, center armrest
- Center console, handbrake lever
- Shift and selector lever bellows
Remaining interior equipment:
- N6SW leather Montana black
---------------------------
Variant 2:
- Leather walk nappa black
Trim parts:
- Seats, trim piece for center console
- Door trim panels, center armrest
- Center console, handbrake lever
- Shift and selector lever bellows
Remaining interior equipment:
- N6SW leather Montana black
---------------------------
Strips and covers in special wood
see illustration 91_0129
---------------------------
Steering wheel, see illustration 91_0082
---------------------------
Door panels, center armrest, parking
brake lever cover, selector lever
bellows, center console and cover, see
screen 91_0649
---------------------------
Rubber boot for shift lever, see
illustration 91_0046
---------------------------
Floor mats for Variant 1, see screen
91_0449
For vehicles with
Sports seat
Seat cover

S481A=Yes
01 Cover, sports seat, leather SCHWARZ 2 05/2003 07/2003 52108015977 ENDED, +core, NoS
01 Cover, sports seat, leather ZIMT 2 05/2003 07/2003 52108025667 $917.91 ENDED, NoS
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
Seat cover

S459A=Yes

S481A=Yes
01 Cover, sports seat, leather SCHWARZ 2 05/2003 07/2003 52108015979 ENDED, +core, NoS
01 Cover, sports seat, leather ZIMT 2 05/2003 07/2003 52108025669 $917.91 ENDED, NoS
For vehicles with
Sports seat
Backrest cover

S481A=Yes
02 Cover, backrest, sports seat, leather SCHWARZ 2 05/2003 07/2003 52108015978 ENDED, +core, NoS
02 Sports seat backrest cover,leather Nappa ZIMT 2 05/2003 07/2003 52108025668 $719.82 ENDED, NoS
For vehicles with
Sports seat
REAR PANEL WITH BAG

S481A=Yes
03 Rear panel seat leather SCHWARZ 2 05/2003 07/2003 52107902340 $474.01 ENDED
03 Rear panel seat leather ZIMT 2 05/2003 07/2003 52108025670 $571.95 ENDED, NoS
For vehicles with
Sports seat
HEADREST

S481A=Yes
04 Headrest leather SCHWARZ 2 05/2003 07/2003 52108015976 ENDED, NoS
04 Napa leather headrest ZIMT 2 05/2003 07/2003 52108025666 $232.13 ENDED, NoS
REAR SEAT COVER
05 Seat cover leather SCHWARZ 1 05/2003 07/2003 52208015983 ENDED, +core, NoS
05 Seat cover leather ZIMT 1 05/2003 07/2003 52208025674 $1023.93 ENDED, +core, NoS
For vehicles with
Through-loading system
REAR SEAT COVER

S465A=Yes
05 Seat cover leather SCHWARZ 1 05/2003 07/2003 52208015988 ENDED, NoS
05 Seat cover leather ZIMT 1 05/2003 07/2003 52208025678 $1227.60 ENDED, +core, NoS
Cover backrest, rear
06 Cover backrest, leather SCHWARZ 1 05/2003 07/2003 52208015984 ENDED, +core, NoS
06 Cover backrest, leather ZIMT 1 05/2003 07/2003 52208025675 $1023.93 ENDED, +core, NoS
Headrest rear lateral
07 Headrest leather SCHWARZ 2 05/2003 07/2003 52208015980 ENDED, NoS
07 Headrest leather ZIMT 2 05/2003 07/2003 52208025671 $229.90 ENDED, NoS
Headrest rear center-seat
08 Headrest, center, leather SCHWARZ 1 05/2003 07/2003 52208015981 ENDED, NoS
08 Headrest, center, leather ZIMT 1 05/2003 07/2003 52208025672 $229.90 ENDED, NoS
For vehicles with
Through-loading system
Cover backrest, rear

S465A=Yes
09 Cover backrest leather left SCHWARZ 1 05/2003 07/2003 52208015989 ENDED, NoS
09 Cover backrest leather right SCHWARZ 1 05/2003 07/2003 52208015990 ENDED, NoS
09 Cover backrest leather left ZIMT 1 05/2003 07/2003 52208025679 $691.92 ENDED, +core, NoS
09 Cover backrest leather right ZIMT 1 05/2003 07/2003 52208025680 $638.91 ENDED, +core, NoS
For vehicles with
Through-loading system
Side panel

S465A=Yes
10 Side finisher, leather, left SCHWARZ 1 05/2003 07/2003 52208015991 ENDED, NoS
10 Side finisher, leather, right SCHWARZ 1 05/2003 07/2003 52208015992 ENDED, NoS
10 Side finisher, leather, left ZIMT 1 05/2003 07/2003 52208025681 $328.10 ENDED, +core, NoS
10 Side finisher, leather, right ZIMT 1 05/2003 07/2003 52208025682 $328.10 ENDED, +core, NoS
CENTER ARMREST REAR
11 Armrest rear, leather SCHWARZ 1 05/2003 07/2003 52208015982 ENDED, +core, NoS
11 Armrest rear, leather ZIMT 1 05/2003 07/2003 52208025673 $714.24 ENDED, NoS
For vehicles with
Through-loading system
CENTER ARMREST REAR

S465A=Yes
11 Armrest rear, leather SCHWARZ 1 05/2003 07/2003 52208015987 ENDED, NoS
11 Armrest rear, leather ZIMT 1 05/2003 07/2003 52208025684 $714.24 ENDED, +core, NoS
For vehicles with
Integrated child seats

S469A=Yes
12 Child seat cover in leather SCHWARZ 2 05/2003 07/2003 52208015986 ENDED, NoS
12 Child seat cover in leather ZIMT 2 05/2003 07/2003 52208025677 ENDED, NoS
13 Seat cover leather SCHWARZ 1 05/2003 07/2003 52208015985 ENDED, NoS
13 Seat cover leather ZIMT 1 05/2003 07/2003 52208025676 $1227.60 ENDED, NoS
For vehicles with
Through-loading system
and
Integrated child seats

S465A=Yes

S469A=Yes
13 Seat cover leather SCHWARZ 1 05/2003 07/2003 52208015993 ENDED, NoS
13 Child seat cover in leather ZIMT 1 05/2003 07/2003 52208025683 ENDED, NoS
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • NoS = No Stock (Part, central, not in stock.)
