5' E39 535i Center console

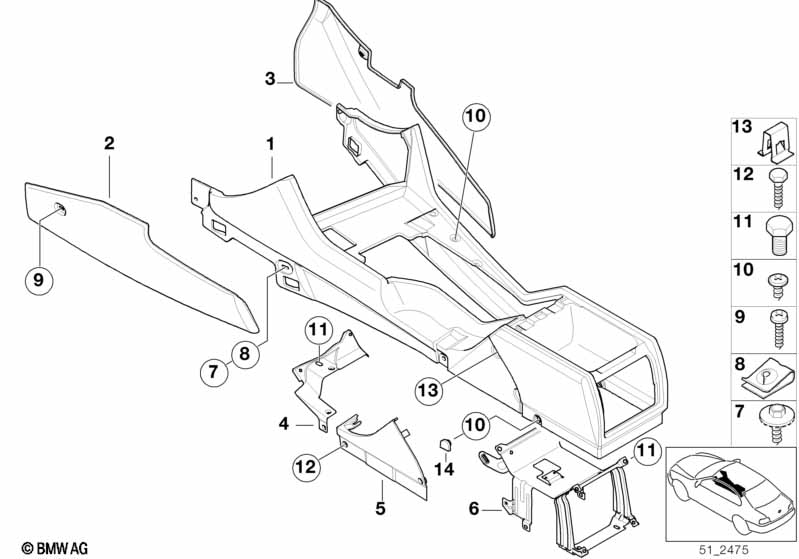

Center console
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Center console SCHWARZ 1 07/2003 51168196881 $251.10 ENDED
01 Center console SCHWARZ 1 51167140657 $481.91 +core
01 Center console GRAU 1 07/2003 51168196882 $251.10 ENDED
01 Center console GRAU 1 51167140658 $481.91 ENDED, +core
01 Center console SANDBEIGE 1 07/2003 51168196884 $251.10 ENDED
01 Center console SANDBEIGE 1 51167140660 $481.91 +core
01 Center console MARINEBLAU 1 51168196883 $229.62 ENDED
01 Center console MARINEBLAU 1 51167140659 $481.91 ENDED, +core
01 Center console DUNKELGRUEN 1 51168196885 $251.10 ENDED
01 Center console ENGLISCHGRÜN 1 51167140661 $251.10 ENDED, +core
LEATHER VERSION MONTANA
01 Center console SCHWARZ 1 51168209840 $1470.78 ENDED
01 Center console GRAU 1 51168209841 $951.39 ENDED
01 Center console MARINEBLAU 1 51168209842 $951.39 ENDED
01 Center console SANDBEIGE 1 51168209843 $951.39 ENDED
02 Front left center console trim panel SCHWARZ 1 51168196911 $64.32
02 Front left center console trim panel GRAU 1 51168196913 $64.32
02 Front left center console trim panel MARINEBLAU 1 51168196915 $54.13 ENDED
02 Front left center console trim panel SANDBEIGE 1 51168196917 $64.32
02 Front left center console trim panel DUNKELGRUEN 1 51168196919 $54.13 ENDED
For vehicles with
Latent heat accumulator

=Yes
02 Front left center console trim panel SCHWARZ 1 51168200879 $54.13
02 Front left center console trim panel GRAU 1 51168200881 $54.13 ENDED
02 Front left center console trim panel MARINEBLAU 1 51168200883 $54.13 ENDED
02 Front left center console trim panel SANDBEIGE 1 51168200885 $54.13 ENDED
02 Front left center console trim panel DUNKELGRUEN 1 51168200887 $54.13 ENDED
03 Front right center console trim panel SCHWARZ 1 51168196912 $64.32
03 Front right center console trim panel GRAU 1 51168196914 $64.32
03 Front right center console trim panel MARINEBLAU 1 51168196916 $54.13 ENDED
03 Front right center console trim panel SANDBEIGE 1 51168196918 $64.32
03 Front right center console trim panel DUNKELGRUEN 1 51168196920 $54.13 ENDED
For vehicles with
Latent heat accumulator

=Yes
03 Front right center console trim panel SCHWARZ 1 51168200880 $54.13
03 Front right center console trim panel GRAU 1 51168200882 $54.13 ENDED
03 Front right center console trim panel MARINEBLAU 1 51168200884 $54.13 ENDED
03 Front right center console trim panel SANDBEIGE 1 51168200886 $54.13 ENDED
03 Front right center console trim panel DUNKELGRUEN 1 51168200888 $54.13 ENDED
04 Bracket, center console 1 51168159703 $2.13
05 Cover center console SCHWARZ 1 51168196901 $23.27
05 Cover center console GRAU 1 51168196902 $23.27
05 Cover center console MARINEBLAU 1 51168196903 $32.36 ENDED
05 Cover center console SANDBEIGE 1 51168196904 $23.27
05 Cover center console DUNKELGRUEN 1 51168196905 $32.36 ENDED
LEATHER VERSION MONTANA
05 Cover center console SCHWARZ 1 51168228326 $52.37 ENDED
05 Cover center console GRAU 1 51168228327 $45.48 ENDED
05 Cover center console MARINEBLAU 1 51168228328 $45.48 ENDED
05 Cover center console SANDBEIGE 1 51168228329 $45.48
06 Bracket, center console rear 1 51168236768 $38.60
07 Hex head screw 4,2X19MM 1 51168192903 $0.73
08 Body nut 1 51451949950 $0.34 ENDED
08 C-clip nut 1 07146988451 $0.36
09 Sheet metal screw 1 09/2002 07119907803 $0.38 ENDED
09 Sheet metal screw ST4,2X13 SW 1 09/2003 07119904187 $0.29 ENDED
09 Sheet metal screw ST4,2X13 SW 1 07119904186 $0.18
10 Fillister head self-tapping screw ST4,2X16-Z2 1 07119907948 $0.18
11 Screw for thermoplastic plastics M4X12MM X 12/2003 07129901776 $0.11 ENDED
11 Fillister head screw TS4X12 ISA X 12/2003 07149218268 ENDED
11 Oval-head screw with washer DELTA PT4X12 X 07149200941
12 Fillister head self-tapping screw ST4,2X16-Z1-SW 6 09/2003 07119900672 $0.18
12 Sheet metal screw ST4,2X16MM 6 07119904172 $0.25
13 Clamp 2 12/2003 51168196960 $0.28 ENDED
13 Plug-in retainer 2 07146957034 $0.25
14 Centre console blind plug SCHWARZ 2 51168196931 $0.42
14 Centre console blind plug GRAU 2 51168196932 $0.42
14 Centre console blind plug MARINEBLAU 2 51168196933 $0.47 ENDED
14 Centre console blind plug SANDBEIGE 2 51168196934 $0.42
14 Centre console blind plug DUNKELGRUEN 2 51168196935 $0.47 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
