5' E39 535i Trim panel A- / B- / C-Column

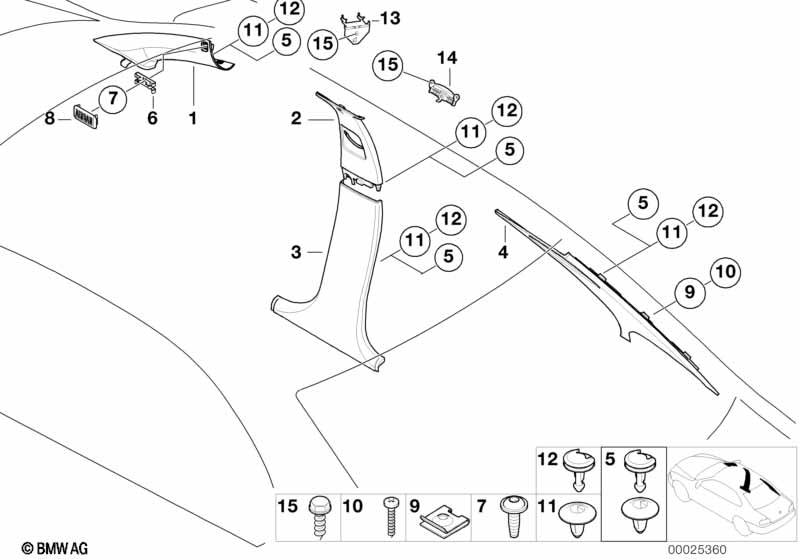

Trim panel A- / B- / C-Column
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering apron left ANTHRAZIT 1 09/1997 51432491491 $52.41 ENDED
01 Covering apron right ANTHRAZIT 1 09/1997 51432491492 $54.29 ENDED
01 Covering apron left HELLGRAU 1 09/1997 51438207831 $52.41 ENDED
01 Covering apron right HELLGRAU 1 09/1997 51438207832 $52.41 ENDED
01 Covering apron right SANDBEIGE 1 09/1997 51438207834 $54.29
For vehicles with
ITS - Head airbag

=Yes
01 Left windshield panel cover - ITS SANDBEIGE 1 51438235007 $54.29
01 Right windshield panel cover - ITS SANDBEIGE 1 51438235008 $54.29
02 Covering column-center top left ANTHRAZIT 1 09/1997 51432491493 $76.81
02 Covering column-center top right ANTHRAZIT 1 09/1997 51432491494 $76.81
02 Covering column-center top left HELLGRAU 1 09/1997 51438207191 $54.29 ENDED
02 Covering column-center top right HELLGRAU 1 09/1997 51438207192 $54.29
02 Covering column-center top left SANDBEIGE 1 09/1997 51438207193 $54.29
02 Covering column-center top right SANDBEIGE 1 09/1997 51438207194 $54.29 ENDED
For vehicles with
ITS - Head airbag

=Yes
02 Trim panel,lft upper centre column ITS SANDBEIGE 1 51437013939 $76.81
02 Trim panel,right upper centre column ITS SANDBEIGE 1 51437013940 $76.81
03 Covering column-center lower left SCHWARZ 1 51438202611 $67.98
03 Trim panel, right lower centre column SCHWARZ 1 51438202612 $67.98
03 Covering column-center lower left MARINEBLAU 1 51438202613 $67.98
03 Trim panel, right lower centre column MARINEBLAU 1 51438202614 $67.98
03 Covering column-center lower left DUNKELGRUEN 1 51438202615 $30.13
03 Trim panel, right lower centre column DUNKELGRUEN 1 51438202616 $30.13 ENDED
03 Covering column-center lower left GRAU 1 51438207195 $67.98
03 Trim panel, right lower centre column GRAU 1 51438207196 $67.98
03 Covering column-center lower left SANDBEIGE 1 51438207197 $67.98
03 Trim panel, right lower centre column SANDBEIGE 1 51438207198 $67.98
04 Trim panel column, rear left ANTHRAZIT 1 51432491495 $86.59
04 Trim panel column, rear right ANTHRAZIT 1 51432491496 $86.59
04 Trim panel column, rear left HELLGRAU 1 51438207835 $86.59
04 Trim panel column, rear right HELLGRAU 1 51438207836 $86.59
04 Trim panel column, rear left SANDBEIGE 1 51438207837 $86.59
04 Trim panel column, rear right SANDBEIGE 1 51438207838 $86.59
05 Clip X 51438189311 $0.55
13 Bracket, windshield panel cover - ITS 2 51438227597 $1.46
14 Column B cover bracket ITS 2 51437013951 $1.23
15 Hex head screw ST4,2X13-C-Z2 4 07119916914 $0.18
Notes
  • ENDED = the part has been discontinued (no longer available).
