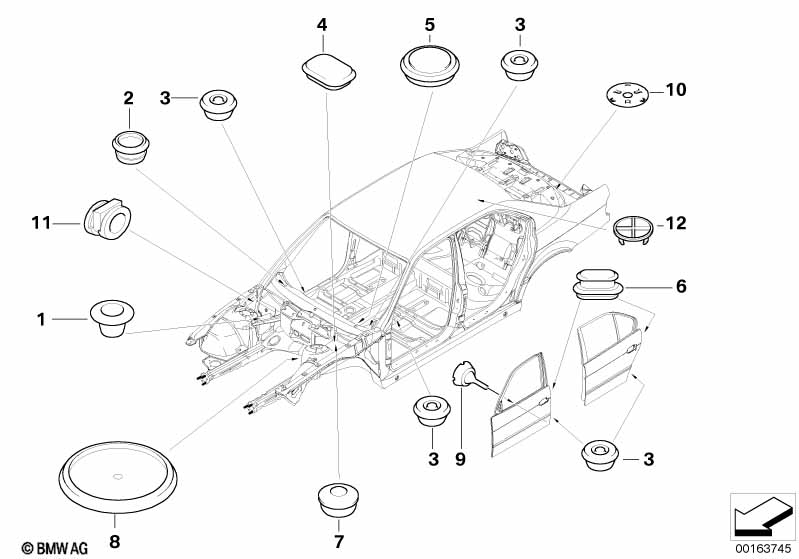

5' E39 535i Sealing cap/plug

Sealing cap/plug
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i D = hole-circle diameter in the
body
01 Blind plug D=8MM 2 51718204406 $0.18
02 Blind plug D=12MM 3 51718110199 $0.18
03 Blind plug D=20MM X 07147140850 $0.19
04 Blind plug D=15MM 1 51718170298 $0.23
05 Blind plug D=35MM 1 07/2003 51710141026 $0.81 ENDED
05 Blind plug D=35MM 1 07/2003 07140404682 $0.63 ENDED
05 Blind plug D=35MM 1 07147140849 $0.73
06 Blind plug 24X12 4 51211975404 $1.26
07 Blind plug D=15MM 1 51718170298 $0.23
09 Bump stop 2 51338201206 $0.87
10 Cover lid D=144MM 1 41128200462 $5.07
11 Blind plug D=21MM 1 13531712239 $1.93
12 Blind plug D=35MM X 07/2003 41121907234 $0.67 ENDED
12 Paint plugs with hot-melt adhesive ring D=35MM X 41007140847 $0.68
Notes
  • ENDED = the part has been discontinued (no longer available).
