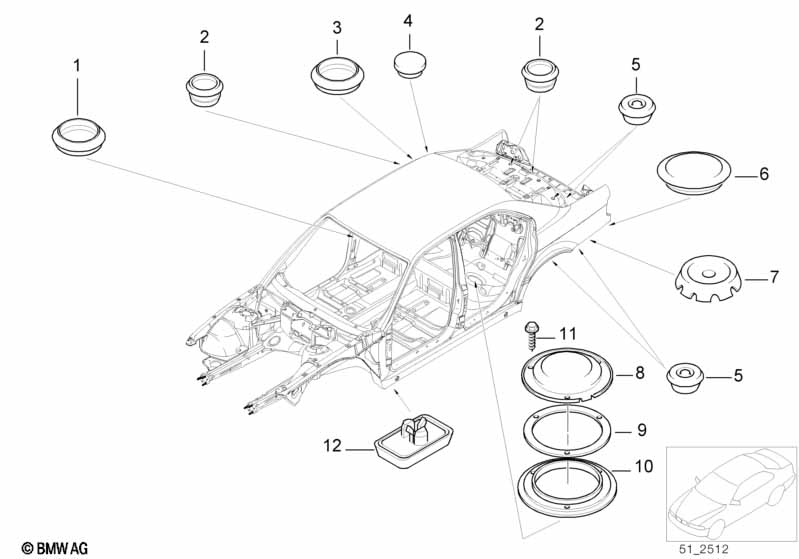

5' E39 535i Sealing cap/plug

Sealing cap/plug
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i D = hole-circle diameter in the
body
01 Blind plug D=25MM 4 51718126605 $0.39
02 Blind plug D=12MM 4 51718110199 $0.18
03 Blind plug D=25MM 2 51718126605 $0.39
04 Blind plug D=14MM 2 33111236826 $0.23
05 Blind plug D=20MM X 07147140850 $0.19
05 Blind plug D=17MM 1 51221924979 $1.10
06 Blind plug D=22MM 1 51711855009 $0.50
07 Blind plug D=20MM 2 51718174490 $0.56
08 Cover lid 2 51718191200 $2.58
09 Gasket 2 51718191201 $0.97
10 Reinforcement ring, left 2 41128184524 $3.88
11 Fillister head self-tapping screw ST4,8X13 6 07119907786 $0.11
12 Support lifting platform 4 51717001650 $14.75
