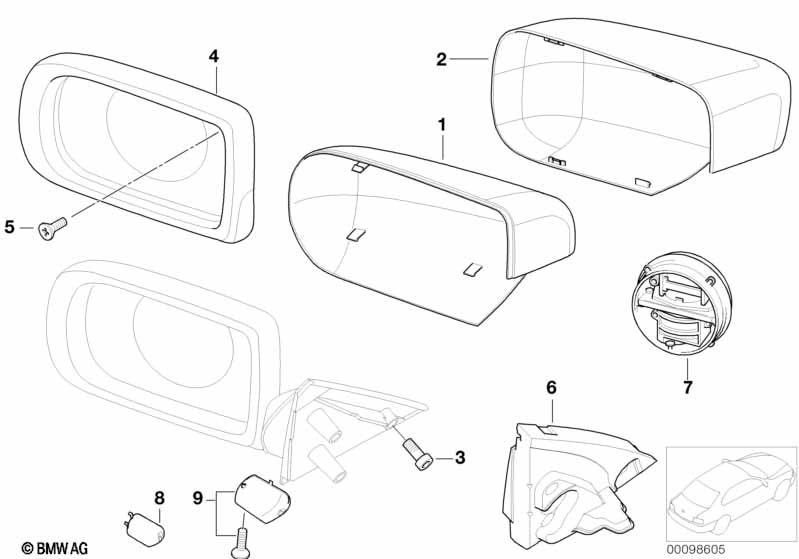

5' E39 535i Outside mirror

Outside mirror
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Only apllies to power folding assembly
ONLY APPLIES TO ELECTRO-CHROMIC TECHNOL.
01 Cover cap, primed, left 1 51168165115 $65.98
01 Cover cap, primed, right 1 51168165116 $65.98
01 Cover cap, painted, left CODE - UNI/MET. 1 51169067424 $188.16 ENDED
When ordering indicate color code
01 Cover cap, painted, right CODE - UNI/MET. 1 51169067425 $188.16 ENDED
When ordering indicate color code
02 Cover cap, primed, left 1 09/1997 51168202685 $65.98
02 Cover cap, primed, right 1 09/1997 51168202686 $65.98
02 Cover cap, painted, left CODE - UNI/MET. 1 09/1997 51169069102 ENDED, +core
When ordering indicate color code
02 Cover cap, painted, right CODE - UNI/MET. 1 09/1997 51169069104 ENDED, +core
When ordering indicate color code
03 Fillister-head screw . 6 12/2003 51168219164 $0.54 ENDED
03 Fillister-head screw 6 07147196375 $0.64
03 Torx bolt ISA M6X12 6 51211973382 $0.66
Only apllies to power folding assembly
ONLY APPLIES TO MEMORY
04 Frame left 1 51168213225 $13.87
04 Frame right 1 51168213226 $13.87
05 Countersunk head screw M3X8 X 51160024588 $0.17
06 Gasket left 1 51328163019 $24.27
06 Gasket right 1 51328163020 $24.27
07 Left drive repair kit 1 67138375459 $105.38
07 Right drive repair kit 1 67138375460 $105.38
For vehicles with
Memory

=Yes
07 Left memory drive repair kit 1 67138375457 $188.25
07 Right memory drive repair kit 1 67138375458 $188.25
08 Cover cap bottem left 1 51167001035 $7.72
08 Cover cap bottem right 1 51167001036 $7.72
Only apllies to power folding assembly
ONLY APPLIES TO ELECTRO-CHROMIC TECHNOL.
09 Cover cap bottem left 1 51167001037 $1.82
09 Cover cap bottem right 1 51167001038 $1.82
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
