5' E39 540i Rear brake / brake pad / wear sensor

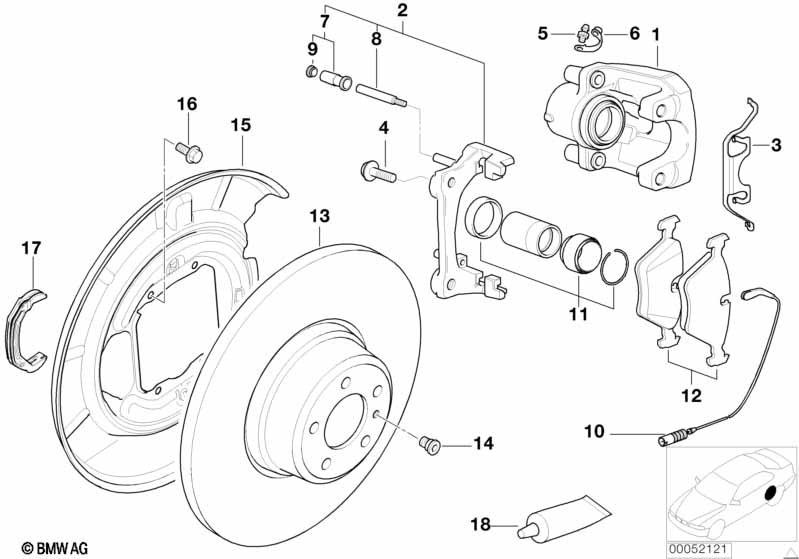

Rear brake / brake pad / wear sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Caliper housing left 1 34211163649 $350.83
01 Caliper housing right 1 34211163650 $350.83
02 Calliper carrier 2 34211163648 $181.18
03 Clip 2 34211163399 $10.22 ENDED
04 Hex bolt with washer M10X32 4 34216772885 $1.75
05 Ventilation valve M10X1 2 34116768018 $6.60
06 Dust cap 2 34111163435 $4.20
07 Repair kit guide bush 2 34111157038 $25.37 ENDED
07 Repair kit guide bush 2 34216869617
08 Guiding bolt 4 34111157041 $20.02
09 Protective plug 4 34111154979 $1.80
10 Brake pad wear sensor 1 34351163066 $23.35
11 Repair set brake caliper 2 34211164440 $39.47
12 Repair kit, brake pads asbestos-free 1 34216761281 $88.38
13 Brake disc, ventilated 298X20 2 34216767060 $103.90
14 Inner hex bolt M8X14 2 34211161806 $1.38
15 Protection plate left 1 34211162773 $25.18
15 Protection plate right 1 34211162774 $25.18
16 Hex bolt with washer M6X12-U1 8 07119904511 $0.62
17 Gasket 2 34211166260 $2.52
18 Brake pad paste 3G 2 83192158851
Notes
  • ENDED = the part has been discontinued (no longer available).
