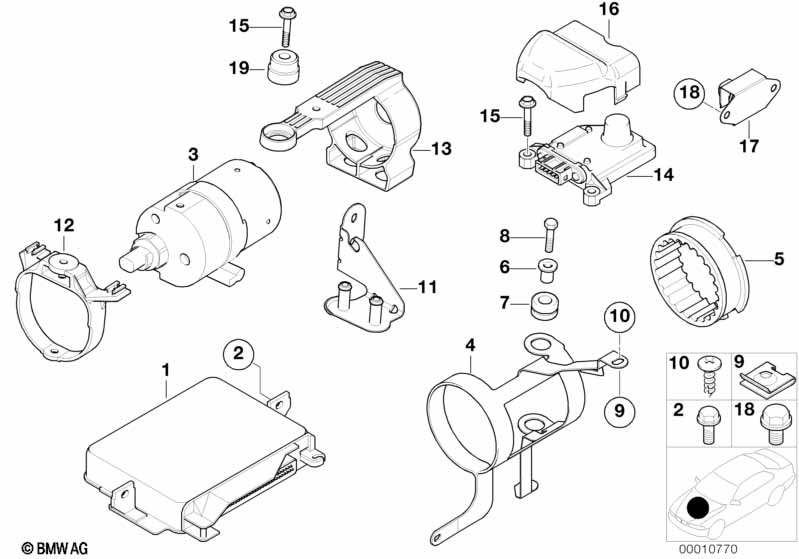

5' E39 540i control unit/DSC sensors/compressor

control unit/DSC sensors/compressor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Basic control unit DSC DSC 1 09/1998 34526750116 $1264.82
02 Hex bolt M5X14-8.8-ZNNIV 2 09/1998 07119904269 $0.36
03 Compressor DSC 1 09/1998 34511164244 $860.94
04 Bracket f compressor 1 09/1998 34511165154 $17.93 ENDED
05 Rubber mount for compressor 1 09/1998 34511165156 $7.62
06 Sleeve 2 09/1998 35401164332 $1.23
07 Grommet 2 09/1998 35401164338 $1.62
08 Hex bolt M6X30 2 09/1998 07119912283 $0.47
09 Body nut ST4,8-13-ZNS3 1 09/1998 07129904223 $0.11
10 Sheet metal screw ST4,8X16 1 09/1998 07119904185 $0.11
14 Speed sensor 1 09/1998 34511164245 $582.27
15 Hex bolt with washer M6X20 3 09/1998 07119904527 $0.44
16 Protection cap 1 09/1998 34521164196 ENDED
17 Accelerating sensor 1 09/1998 37146781405 $102.03
18 Hex bolt with washer M6X10-Z1 2 09/1998 07119915041 $0.25
Notes
  • ENDED = the part has been discontinued (no longer available).
