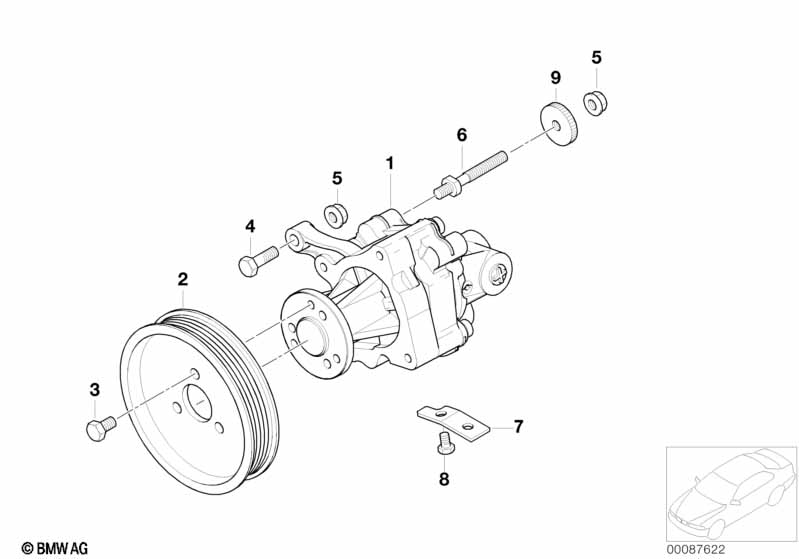

5' E39 540i Power steering pump

Power steering pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. power steering pump 1 32411141570 $715.78
02 Pulley D=105MM 1 09/1998 32421736934 $31.68
02 Pulley D=105MM 1 09/1998 32421437990 $43.63
SHIELD
MOULDED PART
03 Hex bolt with washer M8X18-U1-8.8 3 09/1998 07119905529 $0.96
03 Hex bolt with washer M8X14 3 09/1998 10/2011 07119915067 $0.30 ENDED
03 Hex bolt with washer M8X14 ZNNIV SI 3 09/1998 07119905527 $0.47
04 Hex bolt with washer M8X30-Z3 1 04/1999 07119915085 $0.62
04 Hex bolt with washer M8X30-Z3 1 07119915085 $0.62
04 Hex bolt with washer M8X30-ZNNIV SI 2 04/1999 06/1999 07119905532 $1.25
04 Hex bolt with washer M8X30-Z3 2 06/1999 07119915085 $0.62
05 Collar nut M8 3 07119927022 $0.20
05 Hex nut with plate M8-ZNS3 2 07129904862 $1.12
06 Threaded bolt M8X66 1 32421745532 $2.85
07 Bracket oil pipe 1 17221737601 $6.93
OIL COOLING PIPE
08 Hex bolt M6X12 1 07119913013 $1.22
09 Knurled head nut M8 1 32421707578 $2.56
Notes
  • ENDED = the part has been discontinued (no longer available).
