5' E39 540iP Single wiper parts

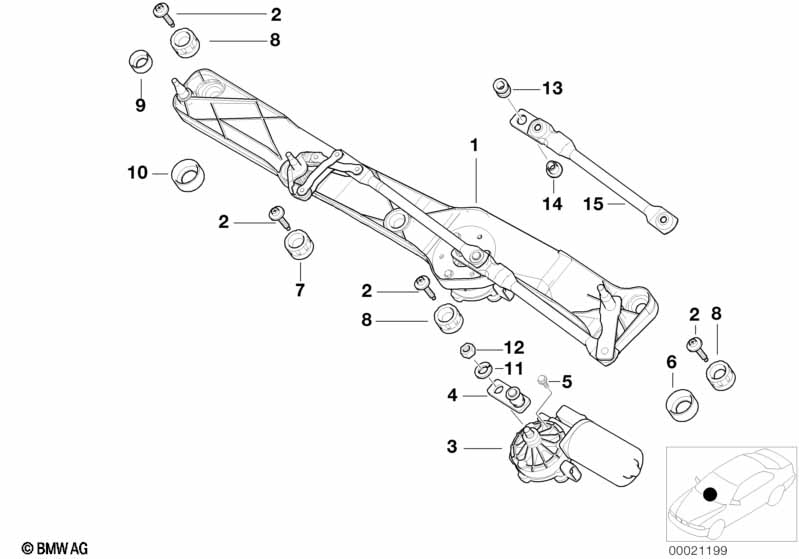

Single wiper parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wiper console 1 61618385218 $282.12
02 Fillister head screw 5 07146988521 $0.68
03 Wiper motor 1 67638360603 $322.18
only in conjunction with
-- Screw self-tapping M6X16MM 1 07131025735 $1.05
-- Wave washer 1 07119904115 $0.09
-- Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
04 Motor crank arm 1 61618361739 $23.37
06 Long hole bearing sleeve 1 61618166973 $7.03
07 Round hole bearing sleeve D=6.4 1 61618165595 $7.03
08 Round hole bearing sleeve D=12 3 61618165596 $7.03
09 Upper damper ring 5 61618166974 $3.35
10 Upper damper ring 5 61618166975 $3.35
11 Wave washer B8 1 08/2002 07119932095 $0.09 ENDED
11 Wave washer 1 07119904115 $0.09
12 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
13 Damper ring 1 61611372676 $5.48
14 Bush 1 61611374870 $7.23
15 Drive rod 1 61618361741 $12.20
Notes
  • ENDED = the part has been discontinued (no longer available).
