5' E39 M5 Individual series"Themenserie 2000 KA62"
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|

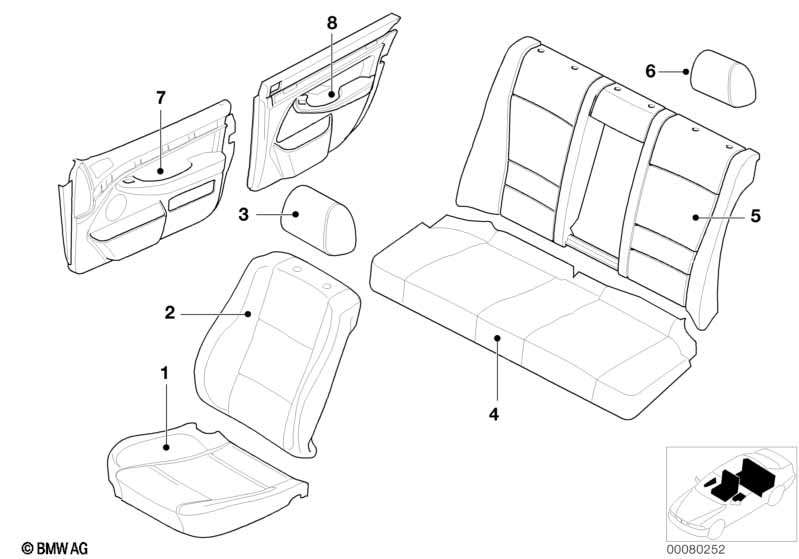

| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Version 1: Leather, Montana black and gray - Door panels, steering wheel Trim strips and cover plates - Seats and head restraints as on N9TT, but with piping in Soft black Nappa - Seats + head restraints without piping As on N6TT --------------------------- Version 2: Leather, Montana black and sandbeige - Door panels, steering wheel Trim strips and cover plates - Seats and head restraints as with N9SN, but with piping in Soft black Nappa - Seats, head restraints without piping As with N6SN --------------------------- Remaining interior equipped as with: - N6SW Montana black leather --------------------------- - Steering wheels, see diagram 91_0079 - Trim strips and cover plates see illustrated chart 91_0130 |
||||||||
| For vehicles with Comfort seat with memory Seat cover |
S456A=Yes |
||||||||
| 01 | Leatehr seat cover with colour strip | GRAU / SW | 2 | 03/2000 | 06/2000 | 52108016388 | ENDED, NoS | ||
| 01 | Leatehr seat cover with colour strip | SANDBEIGE / SW | 2 | 03/2000 | 06/2000 | 52108016409 | ENDED, NoS | ||
| For vehicles with Comfort seat with memory Backrest cover |
S456A=Yes |
||||||||
| 02 | Leatehr backrest cover with colour strip | GRAU / SW | 2 | 03/2000 | 06/2000 | 52108016389 | ENDED, NoS | ||
| 02 | Leatehr backrest cover with colour strip | SANDBEIGE / SW | 2 | 03/2000 | 06/2000 | 52108016410 | ENDED, NoS | ||
| For vehicles with Comfort seat with memory HEADREST |
S456A=Yes |
||||||||
| 03 | Leather head rest with color strip | GRAU / SW | 2 | 03/2000 | 06/2000 | 52108016390 | ENDED, +core, NoS | ||
| 03 | Leather head rest with color strip | SANDBEIGE / SW | 2 | 03/2000 | 06/2000 | 52108016411 | ENDED, NoS | ||
| For vehicles with Comfort seat with memory REAR SEAT COVER |
S456A=Yes |
||||||||
| 04 | Leather seat cover with strip | GRAU / SW | 1 | 03/2000 | 06/2000 | 52208016391 | ENDED, NoS | ||
| 04 | Leather seat cover with strip | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 52208016412 | ENDED, +core, NoS | ||
| For vehicles with Comfort seat with memory Cover backrest, rear |
S456A=Yes |
||||||||
| 05 | Leatehr backrest cover with strip | GRAU / SW | 1 | 03/2000 | 06/2000 | 52208016392 | ENDED, NoS | ||
| 05 | Leatehr backrest cover with strip | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 52208016413 | ENDED, +core, NoS | ||
| For vehicles with Comfort seat with memory HEADREST REAR |
S456A=Yes |
||||||||
| 06 | Head rest leather with cord | GRAU / SW | 2 | 03/2000 | 06/2000 | 52208016393 | ENDED, +core, NoS | ||
| 06 | Head rest leather with cord | SANDBEIGE / SW | 2 | 03/2000 | 06/2000 | 52208016414 | ENDED, +core, NoS | ||
| For vehicles with Comfort seat with memory center-seat headrest |
S456A=Yes |
||||||||
| 06 | Headrest, center, leather, with piping | GRAU / SW | 1 | 03/2000 | 06/2000 | 52208016394 | ENDED, +core, NoS | ||
| 06 | Headrest, center, leather, with piping | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 52208016415 | ENDED, +core, NoS | ||
| For vehicles with Side airbag for driver/passenger Door trim panel, front / airbag |
S260A=Yes |
||||||||
| 07 | Door trim panel, front left / airbag | GRAU / SW | 1 | 03/2000 | 06/2000 | 51418016201 | $1132.74 | ENDED, NoS | |
| 07 | Door trim panel, front right / airbag | GRAU / SW | 1 | 03/2000 | 06/2000 | 51418016202 | $976.50 | ENDED, NoS | |
| 07 | Door trim panel, front left / airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51418016395 | ENDED, NoS | ||
| 07 | Door trim panel, front right / airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51418016396 | ENDED, NoS | ||
| Door trim, rear | |||||||||
| 08 | Door trim panel, rear, left | GRAU / SW | 1 | 03/2000 | 06/2000 | 51428016203 | $968.13 | ENDED, NoS | |
| 08 | Door trim panel, rear, right | GRAU / SW | 1 | 03/2000 | 06/2000 | 51428016204 | $968.13 | ENDED, NoS | |
| 08 | Door trim panel, rear, left | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016397 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016398 | ENDED, NoS | ||
| For vehicles with Side airbags for rear passengers Door trim, rear |
S261A=Yes |
||||||||
| 08 | Door trim panel, rear, left, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014461 | $912.33 | ENDED, NoS | |
| 08 | Door trim panel, rear, right, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014462 | $1187.79 | ENDED, NoS | |
| 08 | Door trim panel, rear, left, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016403 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016404 | ENDED, NoS | ||
| For vehicles with Roller sun vizor, rear lateral Door trim, rear |
S416A=Yes |
||||||||
| 08 | Door trim panel, rear, left | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014457 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014458 | ENDED, NoS | ||
| 08 | Door trim panel, rear, left | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016399 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016400 | ENDED, NoS | ||
| For vehicles with Side airbags for rear passengers and Roller sun vizor, rear lateral Door trim, rear |
S261A=Yes S416A=Yes |
||||||||
| 08 | Door trim panel, rear, left, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014463 | $853.74 | ENDED, NoS | |
| 08 | Door trim panel, rear, right, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014464 | $853.74 | ENDED, NoS | |
| 08 | Door trim panel, rear, left, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016405 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016406 | ENDED, NoS | ||
| For vehicles with Shadow-Line and High gloss shadow line and Roller sun vizor, rear lateral Door trim, rear |
S339A=Yes S760A=No S416A=Yes |
||||||||
| 08 | Door trim panel, rear, left | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014459 | ENDED | ||
| 08 | Door trim panel, rear, right | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014460 | ENDED | ||
| 08 | Door trim panel, rear, left | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016401 | ENDED | ||
| 08 | Door trim panel, rear, right | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016402 | ENDED | ||
| For vehicles with Shadow-Line and High gloss shadow line and Roller sun vizor, rear lateral Door trim, rear |
S339A=No S760A=Yes S416A=Yes |
||||||||
| 08 | Door trim panel, rear, left | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014459 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014460 | ENDED, NoS | ||
| 08 | Door trim panel, rear, left | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016401 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016402 | ENDED, NoS | ||
| For vehicles with Shadow-Line and High gloss shadow line and Roller sun vizor, rear lateral and Side airbags for rear passengers Door trim, rear |
S339A=Yes S760A=No S416A=Yes S261A=Yes |
||||||||
| 08 | Door trim panel, rear, left, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014465 | $912.33 | ENDED | |
| 08 | Door trim panel, rear, right, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014466 | $912.33 | ENDED | |
| 08 | Door trim panel, rear, left, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016407 | ENDED | ||
| 08 | Door trim panel, rear, right, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016408 | ENDED | ||
| For vehicles with Shadow-Line and High gloss shadow line and Roller sun vizor, rear lateral and Side airbags for rear passengers Door trim, rear |
S339A=No S760A=Yes S416A=Yes S261A=Yes |
||||||||
| 08 | Door trim panel, rear, left, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014465 | $912.33 | ENDED, NoS | |
| 08 | Door trim panel, rear, right, airbag | SW/GRAU | 1 | 03/2000 | 06/2000 | 51428014466 | $912.33 | ENDED, NoS | |
| 08 | Door trim panel, rear, left, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016407 | ENDED, NoS | ||
| 08 | Door trim panel, rear, right, airbag | SANDBEIGE / SW | 1 | 03/2000 | 06/2000 | 51428016408 | ENDED, NoS | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
