5' E39 M5 Hydro steering-oil pipes

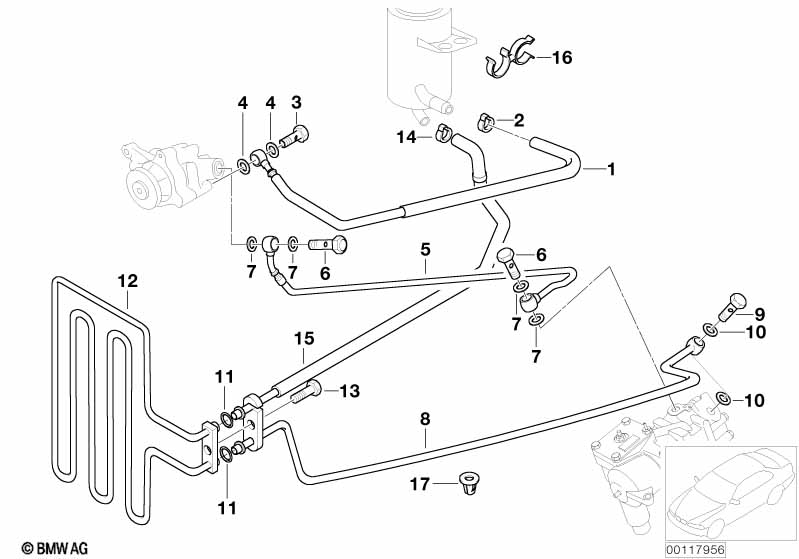

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Suction hose 1 32412228873 $37.89 +core
02 Hose clamp D=20,9-24,1 2 32111131345 $2.12
05 Pressure hose assy 1 32412228867 $229.83
ONLY APPLIES TO
STEERING GEAR
06 Hollow bolt M14X1,5X26 1 02/2012 32416783886 $2.11 ENDED
06 Hollow bolt M14X1,5X26 1 32416852469
07 Gasket ring A14X20-CUSN 2 32411093596 $0.31
ONLY APPLIES TO VANE PUMP
07 Gasket ring A16X22-CUSN 2 32411093597 $0.27
08 Return pipe 1 32411094205 $108.07
10 Gasket ring A16X22-CUSN 2 32411093597 $0.27
11 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
12 Cooling coil 1 17111141819 $107.30
13 Hex bolt with washer M8X30-Z3 1 07119915085 $0.62
14 Hose clamp D=16,6-20MM 1 16121180242 $1.08
15 Return pipe 1 32412228868 $41.26 +core
16 Hose clamp 1 11722241129 $2.30
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
