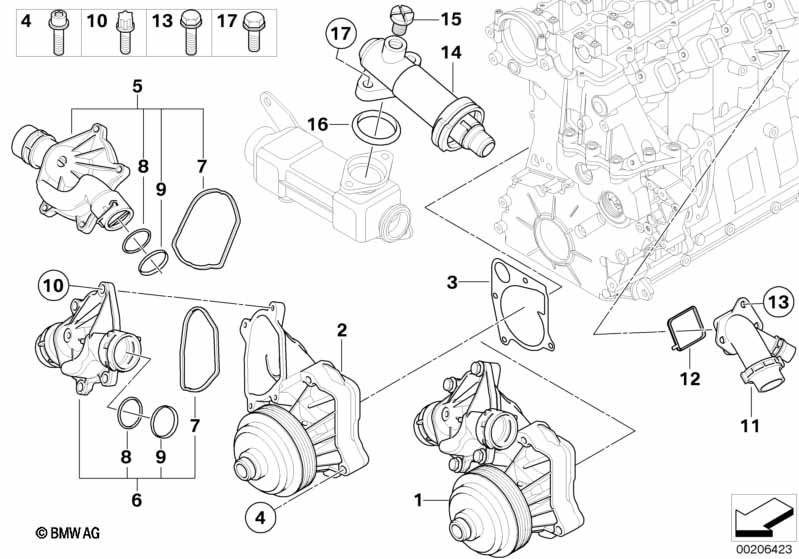

5' E39 530d Waterpump - Thermostat

Waterpump - Thermostat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coolant pump, mechanical 1 09/1999 11512354055
03 Gasket Steel 1 11517793796 $13.58
04 Torx screw with collar M7X38 4 11517789351
05 thermostat with adapter 1 09/1999 11512247269
Only suitable for water pump with part
identification
11 51 2 247 263
06 thermostat with adapter 1 09/1999 11512354056 $67.22
Only suitable for water pump with part
identification
11 51 2 354 055
07 Profile-gasket 1 11517787692 $6.02
08 O-ring 1 11517788984 $1.19
09 backup ring 1 11517788985 $1.61
10 Torx screw M6X20 4 11517514935
11 Connector 1 11127806196 $10.41
12 Profile-gasket 1 11122247745 $5.44
13 Hex bolt with washer M6X25-ZNNIV SI 3 07119905400 $0.65
