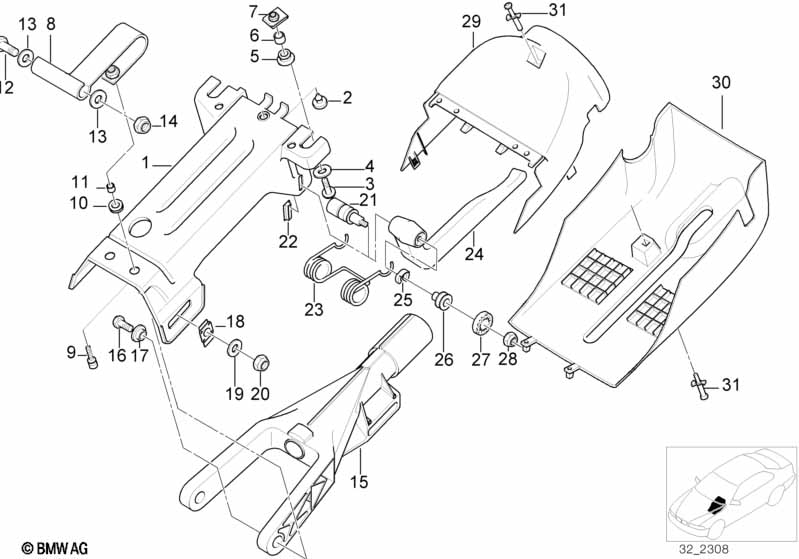

5' E39 523i Manually adjust. steering column

Select another car > Steering > Steering column

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price	Notes
01	Supporting bracket		1			32311093704	$35.71
02	Clutch pedal stop buffer		1			35311103849	$0.73
03	Hex bolt	M8X28-ZN	2			07119913659	$0.47
03	Fillister head with washer	M8X28MM	2			32306756112	$0.91
04	Washer	8,4	2		06/2003	07119936441	$0.78	ENDED
04	Washer	8,4X24X2-ZNS3	2			07119904164	$0.40
05	Guide bush		2			32311095720	$0.29
06	Spacer tube		2			32311111186	$0.88
07	Fixing clamp		2		09/1997	32311092889	$8.83
07	Fixing clamp		2	09/1997	03/1999	32311161657	$2.95
07	Fixing clamp		2			32311092889	$8.83
08	Steering column bracket		1			32311092088	$8.00
09	Fracture bolt		1			32311093570	$1.83
10	Guide bush		1			32311111185	$1.73
11	Spacer tube		1			32311111186	$0.88
12	Hex bolt	M8X90	1		09/1990	07119912567	$1.42	ENDED
12	Hex bolt	M8X90	1			07119912471	$2.80
13	Washer	A8,4-200	2		12/2003	07119900052	$0.11	ENDED
13	Washer	8,4X16X1,6-ZNNV	2			07119907030
14	Self-locking hex nut	M8	1			07129964655	$0.25
15	Steering column tube		1			32311093513	$55.52	+core
16	Hex bolt	M8X30-ZN	2			07119913662	$0.22
17	Sleeve	L=5,25MM	2			32311161899	$0.75
18	Guide		4			32301094925	$0.17
19	Washer	A8,4X25	2			07147201571	$0.20
20	Self-locking hex nut		2			32311092337	$0.17
21	Clamping device f steering column adjust		1			32301162617	$24.27
22	Bush		2			32301093514	$1.40
23	Retainer spring		1			32311161645	$6.70
24	Adjust-lever		1			32311162641	$8.83
25	Circlip	D8,0	1			07129934208	$0.87
26	Bush		1			32301092775
27	Grooved ball bearing	16,0X8,0X5,5	1			32311090237
28	Self-locking hex nut	M6	1			32311092296	$0.17
29	Trim panel upper part		1		03/1999	32311161654	$90.32
29	Trim panel upper part		1	03/1999		32311095635	$90.32
30	Lower trim panel		1		03/1999	32311094642
	only in conjunction with
--	Cover		1		03/1999	32311092255
30	Lower trim panel		1	03/1999		32311095782		ENDED
31	Clamp		2			51131885399	$0.35

Notes

ENDED = the part has been discontinued (no longer available).
+core = plus core charge (possibility of a return of the old part)
