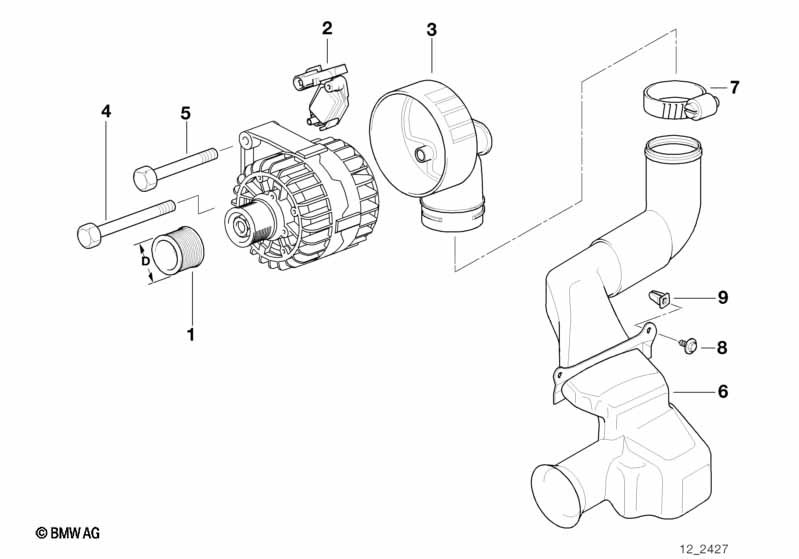

5' E39 528i Alternator, individual parts 80A

Alternator, individual parts 80A
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR VALEO
Typ Nr. 2 541 811
BMW Nr. 12 31 1 740 633 / 635
01 Pulley alternator DB=55MM 1 12311713945 $32.10 ENDED
02 Voltage regulator VALEO 1 12311432965 $124.68
only in conjunction with
-- Intake manifold VALEO/D=65MM 1 12311432966 $34.68 +core
03 Intake manifold 1 12311740636 +core
04 Hex bolt M10X125 1 06/2003 07119900630 $2.78 ENDED
04 Hex bolt with washer M10X125 1 07119905523 $2.84
05 Hex bolt with washer M10X110-Z1 1 11/1997 07119900476 $1.20
06 Air channel 1 12311744460 $24.78
07 Hose clamp L59-66 1 07129952125 $1.64
08 Hex head screw ST4,8X16-ZNS3 2 07119901299 $0.25
09 Expanding nut ST 4.8 WEISS 2 63171367868 $0.60
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
