5' E39 528i Alternator parts 140a

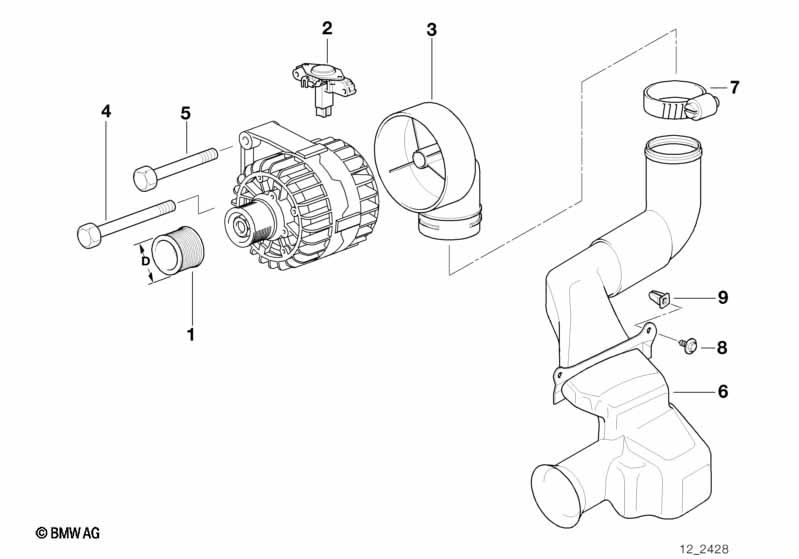

Alternator parts 140a
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR BOSCH
Typ Nr. 0 123 515 004
BMW Nr. 12 31 1 740 629 / 631
ONLY APPLIES TO ALTERNATOR BOSCH
Typ Nr. 0 123 515 010
BMW Nr. 12 31 1 432 831 / 832
01 Pulley alternator D=55MM 1 12311432988 $32.10
only applies to
-- Compact alternator 140A X 12311740629 $592.11 ENDED, +core
02 Voltage regulator BOSCH 1 12311713491 $157.93
03 Intake manifold D=65MM 1 12311436637 $25.58
04 Hex bolt M10X125 1 06/2003 07119900630 $2.78 ENDED
04 Hex bolt with washer M10X125 1 07119905523 $2.84
05 Hex bolt M10X150 1 07119904677 $3.82
06 Air channel 1 12311744460 $24.78
07 Hose clamp L59-66 1 07129952125 $1.64
08 Hex head screw ST4,8X16-ZNS3 2 07119901299 $0.25
09 Expanding nut ST 4.8 WEISS 2 63171367868 $0.60
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
