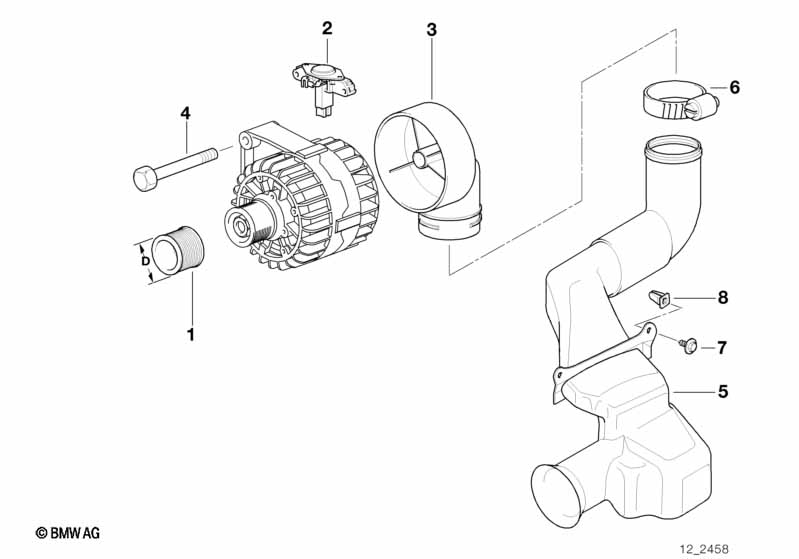

5' E39 528i Alternator, individual parts 120A

Alternator, individual parts 120A
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR BOSCH
Typ no. 0 123 515 022, BMW no. 12 31 1
432 986 / 980
ONLY APPLIES TO ALTERNATOR BOSCH
Typ no. 0 123 515 023, BMW no. 12 31 1
433 265 / 266
01 Pulley alternator D=55MM 1 12311432988 $32.10
only applies to
-- Compact alternator 120A X 12311432986 +core
02 Voltage regulator BOSCH 1 12311713491 $157.93
03 Intake manifold D=65MM 1 12311436637 $25.58
04 Hex bolt M10X125 1 06/2003 07119900630 $2.78 ENDED
04 Hex bolt with washer M10X125 1 07119905523 $2.84
05 Air channel 1 12311744460 $24.78
06 Hose clamp L59-66 1 07129952125 $1.64
07 Hex head screw ST4,8X16-ZNS3 2 07119901299 $0.25
08 Expanding nut ST 4.8 WEISS 2 63171367868 $0.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
