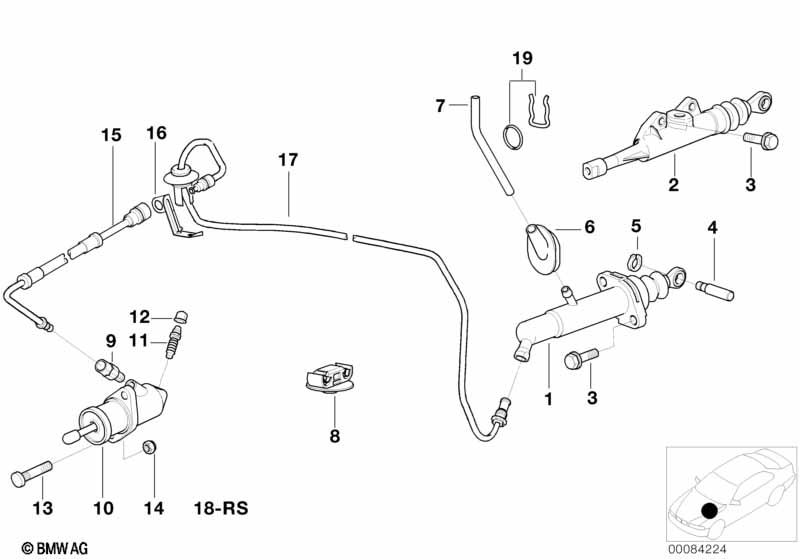

5' E39 528i Clutch control

Clutch control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Input cylinder clutch 1 09/1997 21526758828 $141.70
03 Hex bolt with washer M6X25-ZNNIV SI 2 09/1997 07119905400 $0.65
04 Pin, master cylinder D=12MM/L=61MM 1 09/1997 21521161729 $1.72
05 Fuse B10-ZNS3 1 09/1997 07129904567 $0.40
06 Grommet 1 09/1997 21521161979 $2.70
07 Hose 7,5X13 X 09/1997 21521163714 $8.75
08 Brake pipe bracket 1 09/1997 34301161568 $1.48
09 Lock valve 1 09/1997 21521163776 $15.72
10 Clutch slave cylinder D=22,20MM 1 09/1997 21526775924 $73.46
11 Vent screw 1 09/1997 21521116360 $6.32
12 Dust cap 1 09/1997 34111153198 $6.15
13 Knurled bolt 2 09/1997 21511203012 $2.18
14 Self-locking hex nut M8-8-ZNNI SI 2 09/1997 07129906196 $1.60
15 Pipe 1 09/1997 21526751466 $45.07
16 Holder 1 09/1997 21521162112 $3.38 ENDED
17 Connecting line 1 09/1997 21521163781 $56.57
19 Repair kit clutch plug-in connector 1 09/1997 21521165451 $6.28
Notes
  • ENDED = the part has been discontinued (no longer available).
