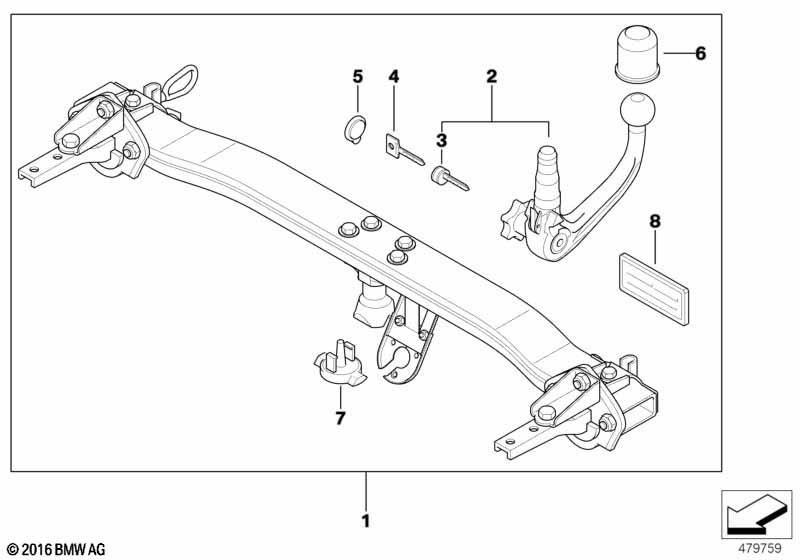

5' E39 528i Towing hitch, detachable

Towing hitch, detachable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
01 Towing hitch, detachable 1 71606768848 +core, EBA 9789640
02 Removable ball WESTFALIA 1 71601182544 $616.59 +core
03 Key (code) 2wxx WESTFALIA 1 71601094282 $28.18
05 protective cap, key 1 71601134422 $1.04
06 Trailer hitch ball protection cap 1 71601246076
07 Blind plug ROT 1 71601090489 $8.15
08 Drawbar load ratings plate 50KG 1 71601135081
08 Drawbar load ratings plate 75KG 1 71601135082
08 Drawbar load ratings plate MIN 50KG 1 71601139628 ENDED
08 Drawbar load ratings plate 90KG 1 71601094572
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
