5' E39 528i Single parts of trailer hitch

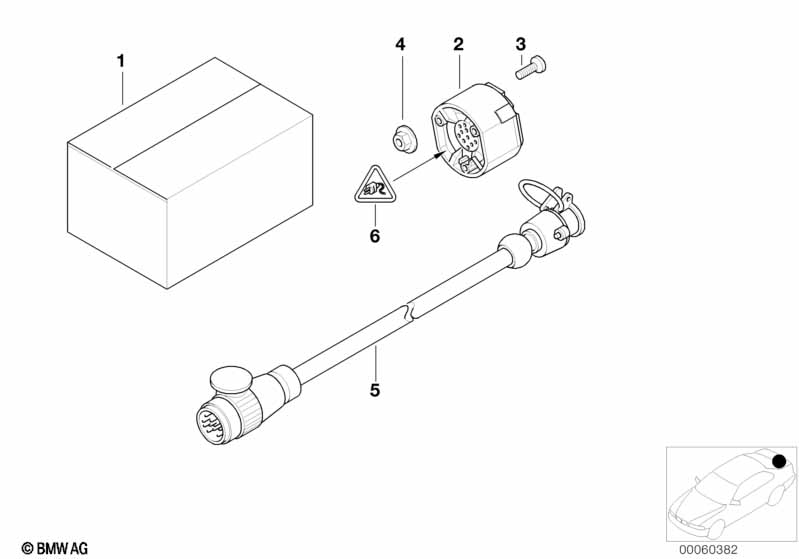

Single parts of trailer hitch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mechanical mounting parts set WESTFALIA 1 71601093014 ENDED, +core
02 Plug-in socket 1 61131378999 $76.67
03 Countersunk screw M5 X 35 3 07119904582
04 Hex nut M5-8-ZNNIV SI 3 07119905729
05 Adapter 1 61131382153 $145.08
06 Plug housing 13 POLIG 1 61131378988 $9.65
only in conjunction with
-- Snap-in receptacle 2.5 with cable 0,5-1,0 MM² X 61130007449 $2.07
-- Snap-in receptacle 2.5 with cable 1,0-2,5 MM² X 61130007450 $2.32
-- Grommet 1 61138384239 $7.73
07 Adapter 13 - 7 1 61136942997 $34.12
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
