5' E39 528i Crankshaft with bearing shells

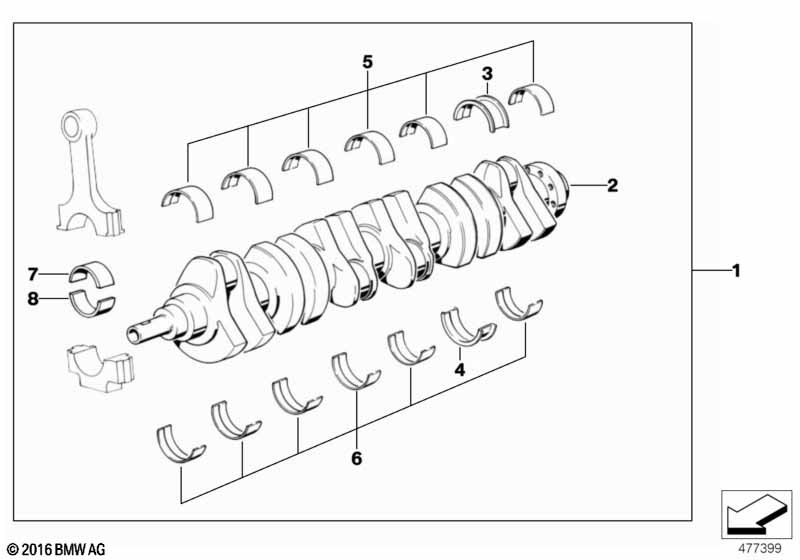

Crankshaft with bearing shells
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 AT-crankshaft with bearing shells 1 09/1998 11211433026 $1117.37 +core
For vehicles with
Thailand engine 2.4

S963A=Yes
01 Crankshaft with bearing shells 1 03/1999 11211402701 +core
03 Guide-bearing Shell yellow 60,00MM(0) 1 09/1998 11211706829 $27.36
03 Guide-bearing Shell green 60,00MM(0) 1 09/1998 11211706830 $27.36
03 Guide-bearing Shell white 60,00MM(0) 1 09/1998 11211706831 $27.36
03 Guide-bearing Shell yellow 59,75MM(+0,25) 1 09/1998 11211706832 $37.98
03 Guide-bearing Shell white 59,75MM(+0,25) 1 09/1998 11211706834 $37.98
03 Guide-bearing Shell yellow 59,50MM(+0,50) 1 09/1998 11211706855 $37.98
03 Guide-bearing Shell green 59,50MM(+0,50) 1 09/1998 11211706856 $37.98
03 Guide-bearing Shell white 59,50MM(+0,50) 1 09/1998 11211706857 $37.98
For vehicles with
Thailand engine 2.4

S963A=Yes
03 Guide-bearing Shell yellow 60,00MM(0) 1 03/1999 11211706829 $27.36
03 Guide-bearing Shell green 60,00MM(0) 1 03/1999 11211706830 $27.36
03 Guide-bearing Shell white 60,00MM(0) 1 03/1999 11211706831 $27.36
03 Guide-bearing Shell yellow 59,75MM(+0,25) 1 03/1999 11211706832 $37.98
03 Guide-bearing Shell green 59,75MM(+0,25) 1 03/1999 11211706833 $37.98
03 Guide-bearing Shell white 59,75MM(+0,25) 1 03/1999 11211706834 $37.98
03 Guide-bearing Shell yellow 59,50MM(+0,50) 1 03/1999 11211706855 $37.98
03 Guide-bearing Shell green 59,50MM(+0,50) 1 03/1999 11211706856 $37.98
03 Guide-bearing Shell white 59,50MM(+0,50) 1 03/1999 11211706857 $37.98
04 Guide-bearing Shell yellow 60,00MM(0) 1 09/1998 11212241934 $27.36
04 Guide-bearing Shell green 60,00MM(0) 1 09/1998 11212241935 $27.36
04 Guide-bearing Shell white 60,00MM(0) 1 09/1998 11212241936 $27.36
04 Guide-bearing Shell yellow 59,75MM(+0,25) 1 09/1998 11212241937 $37.98
04 Guide-bearing Shell green 59,75MM(+0,25) 1 09/1998 11212241938 $37.98
04 Guide-bearing Shell white 59,75MM(+0,25) 1 09/1998 11212241939 $37.98
04 Guide-bearing Shell yellow 59,50MM(+0,50) 1 09/1998 11212241940 $37.98
04 Guide-bearing Shell green 59,50MM(+0,50) 1 09/1998 11212241941 $33.48
04 Guide-bearing Shell white 59,50MM(+0,50) 1 09/1998 11212241942 $37.98
For vehicles with
Thailand engine 2.4

S963A=Yes
04 Guide-bearing Shell yellow 60,00MM(0) 1 03/1999 11212241934 $27.36
04 Guide-bearing Shell green 60,00MM(0) 1 03/1999 11212241935 $27.36
04 Guide-bearing Shell white 60,00MM(0) 1 03/1999 11212241936 $27.36
04 Guide-bearing Shell yellow 59,75MM(+0,25) 1 03/1999 11212241937 $37.98
04 Guide-bearing Shell green 59,75MM(+0,25) 1 03/1999 11212241938 $37.98
04 Guide-bearing Shell white 59,75MM(+0,25) 1 03/1999 11212241939 $37.98
04 Guide-bearing Shell yellow 59,50MM(+0,50) 1 03/1999 11212241940 $37.98
04 Guide-bearing Shell green 59,50MM(+0,50) 1 03/1999 11212241941 $33.48
04 Guide-bearing Shell white 59,50MM(+0,50) 1 03/1999 11212241942 $37.98
05 Bearing shell yellow 60,00MM(0) 6 09/1998 11211706847 $16.27
05 Bearing shell green 60,00MM(0) 6 09/1998 11211706848 $16.27
05 Bearing shell white 60,00MM(0) 6 09/1998 11211706849 $16.27
05 Bearing shell yellow 59,75MM(+0,25) 6 09/1998 11211706850 $16.10
05 Bearing shell green 59,75MM(+0,25) 6 09/1998 11211706851 $15.88
05 Bearing shell white 59,75MM(+0,25) 6 09/1998 11211706852 $15.88
05 Bearing shell yellow 59,50MM(+0,50) 6 09/1998 11211706864 $15.88
05 Bearing shell green 59,50MM(+0,50) 6 09/1998 11211706865 $15.88
05 Bearing shell white 59,50MM(+0,50) 6 09/1998 11211706866 $16.74
For vehicles with
Thailand engine 2.4

S963A=Yes
05 Bearing shell yellow 60,00MM(0) 6 03/1999 11211706847 $16.27
05 Bearing shell green 60,00MM(0) 6 03/1999 11211706848 $16.27
05 Bearing shell white 60,00MM(0) 6 03/1999 11211706849 $16.27
05 Bearing shell yellow 59,75MM(+0,25) 6 03/1999 11211706850 $16.10
05 Bearing shell green 59,75MM(+0,25) 6 03/1999 11211706851 $15.88
05 Bearing shell white 59,75MM(+0,25) 6 03/1999 11211706852 $15.88
05 Bearing shell yellow 59,50MM(+0,50) 6 03/1999 11211706864 $15.88
05 Bearing shell green 59,50MM(+0,50) 6 03/1999 11211706865 $15.88
05 Bearing shell white 59,50MM(+0,50) 6 03/1999 11211706866 $16.74
06 Bearing shell yellow 60,00MM(0) 6 09/1998 11211717526 $16.27
06 Bearing shell green 60,00MM(0) 6 09/1998 11211717527 $16.27
06 Bearing shell white 60,00MM(0) 6 09/1998 11211717528 $16.27
06 Bearing shell yellow 59,75MM(+0,25) 6 09/1998 11211717779 $16.10
06 Bearing shell green 59,75MM(+0,25) 6 09/1998 11211717780 $15.88
06 Bearing shell white 59,75MM(+0,25) 6 09/1998 11211717781 $15.88
06 Bearing shell yellow 59,50MM(+0,50) 6 09/1998 11211717782 $15.88
06 Bearing shell green 59,50MM(+0,50) 6 09/1998 11211717783 $15.88
06 Bearing shell white 59,50MM(+0,50) 6 09/1998 11211717784 $16.74
For vehicles with
Thailand engine 2.4

S963A=Yes
06 Bearing shell yellow 60,00MM(0) 6 03/1999 11211717526 $16.27
06 Bearing shell green 60,00MM(0) 6 03/1999 11211717527 $16.27
06 Bearing shell white 60,00MM(0) 6 03/1999 11211717528 $16.27
06 Bearing shell yellow 59,75MM(+0,25) 6 03/1999 11211717779 $16.10
06 Bearing shell green 59,75MM(+0,25) 6 03/1999 11211717780 $15.88
06 Bearing shell white 59,75MM(+0,25) 6 03/1999 11211717781 $15.88
06 Bearing shell yellow 59,50MM(+0,50) 6 03/1999 11211717782 $15.88
06 Bearing shell green 59,50MM(+0,50) 6 03/1999 11211717783 $15.88
06 Bearing shell white 59,50MM(+0,50) 6 03/1999 11211717784 $16.74
07 Bearing shell, blue 45,00MM(0) 6 09/1998 11241284850 $15.98
07 Bearing shell, blue 44,75MM(+0,25) 6 09/1998 11241284852 $21.31
07 Bearing shell, blue 44,50MM(+0,50) 6 09/1998 11241284854 $21.31
For vehicles with
Thailand engine 2.4

S963A=Yes
07 Bearing shell, blue 45,00MM(0) 6 03/1999 11241284850 $15.98
07 Bearing shell, blue 44,75MM(+0,25) 6 03/1999 11241284852 $21.31
07 Bearing shell, blue 44,50MM(+0,50) 6 03/1999 11241284854 $21.31
08 Bearing shell, red 45,00MM(0) 6 09/1998 11241284849 $16.49
08 Bearing shell, red 44,75MM(+0,25) 6 09/1998 11241284851 $13.27
08 Bearing shell, red 44,50MM(+0,50) 6 09/1998 11241284853 $13.27
For vehicles with
Thailand engine 2.4

S963A=Yes
08 Bearing shell, red 45,00MM(0) 6 03/1999 11241284849 $16.49
08 Bearing shell, red 44,75MM(+0,25) 6 03/1999 11241284851 $13.27
08 Bearing shell, red 44,50MM(+0,50) 6 03/1999 11241284853 $13.27
Notes
  • +core = plus core charge (possibility of a return of the old part)
