5' E39 528i Exhaust manifold

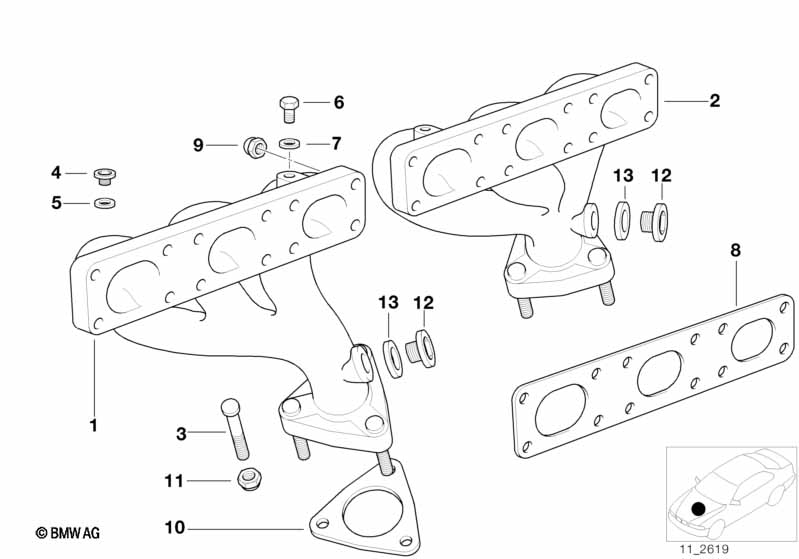

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold, front 1 09/1998 11621744250 $328.47
02 Exhaust manifold, rear 1 09/1998 11621744251 $328.47
03 Hex bolt M10X40 6 09/1998 11621427586 $21.57
04 Screw plug AM14X1,5 2 09/1998 07119919228 $0.85
05 Gasket ring A14X18-CU 2 09/1998 07119963201 $0.18
For vehicles with
Catalytic converter

=No
06 Screw Plug With Gasket Ring M18X1,5 2 09/1998 11621437517 $11.43
08 Gasket Asbestos Free 2 09/1998 11621744252 $18.37
Required for repair
-- Hex nut 24 09/1998 11721437202 $0.72
09 Hex nut X 09/1998 11721437202 $0.72
10 Gasket Asbestos Free 2 09/1998 18301716888 $11.75
Required for repair
-- Hex nut M10 6 09/1998 18301737774 $1.65
11 Hex nut M10 6 09/1998 18301737774 $1.65
