5' E39 528i Cooling System Water Hoses

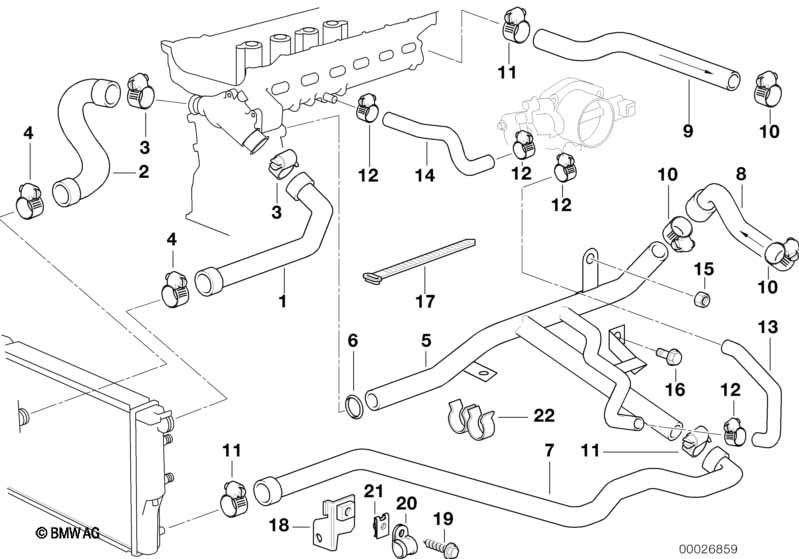

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Water hose 1 09/1998 11531740832 $22.64 +core
02 Water hose 1 09/1998 11531740481 $30.20 +core
03 Hose clamp L42-52 2 09/1998 11531708296 $2.60
04 Hose clamp L42-52 2 09/1998 11531708296 $2.60
05 Heater return pipe 1 09/1998 11531433059 $107.50
06 O-ring 18,2X3 2 09/1998 11531703848 $1.25
07 Return hose 1 09/1998 11531744054 $17.66
08 Hose f radiator and engine return 1 09/1998 64218367930 $7.43
09 Hose f engine inlet and addit.water pump 1 09/1998 64218391003 $17.00
10 Hose clamp L28-33 1 09/1998 07129952113 $0.96
10 Hose clamp L16-30 1 09/1998 64218367179 $1.07
11 Hose clamp L28-33 3 09/1998 07129952113 $0.96
12 Hose clamp L15-18 4 09/1998 11151727509 $1.02
13 Hose 1 09/1998 13541703945 $7.73
14 Hose 1 09/1998 13541703865 $14.87
15 Hex nut M6-8-ZNNIV SI 1 09/1998 07119905544 $0.64
17 Cable tie 120MM 2 09/1998 32411112282 $0.65
19 Hex head screw ST6,3X22-C-Z1 1 09/1998 07119916969 $0.29 ENDED
20 Clamp D=28/6,4 1 09/1998 11531267334 $1.61
21 Body nut ST6,3-4 ZNS3 1 09/1998 07147144276 $0.47
22 Hose clamp D=18/D=25 1 09/1998 12511309471 $1.50
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
