5' E39 528i on board monitor / TV amplifier

on board monitor / TV amplifier

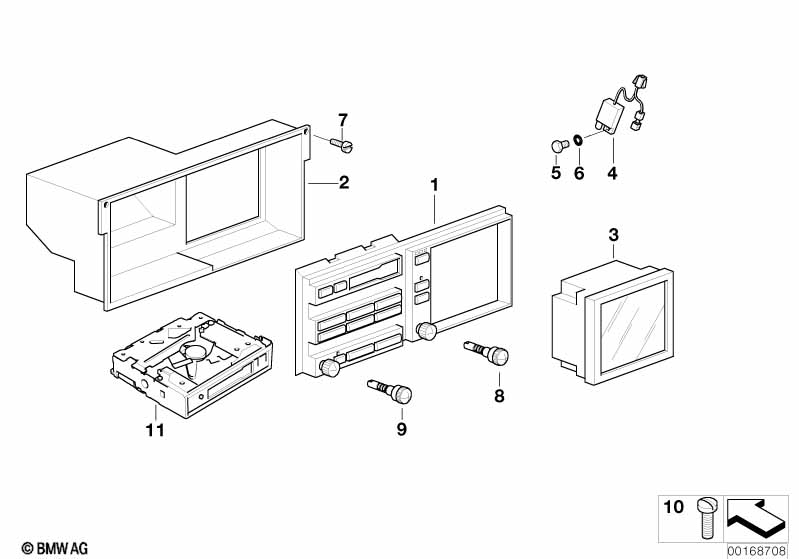

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 On board monitor cover 1 09/1998 65528375942 $395.68 ENDED, +core
Use TN 9 176 544 for disk drive
problems.
02 Housing with cassette drive 1 09/2000 65528386303 $442.62 ENDED
03 Conversion kit for display/navigation 1 09/1997 09/2000 65529184353 $2346.12 EBA 0443747
04 Left TV amplifier BLAU 1 65248362532 $70.52
04 Right TV amplifier BLAU 1 65248362533 $70.52
05 Hex bolt M5X15 2 84318361762 $0.27
06 Tooth washer A6,4 2 07119936133 $0.38
07 Fillister head screw M3X8 7 07119907602 $0.62
08 Rotary knob on-board monitor, menu 1 09/2000 65528384685 $10.69
09 Rotary knob on-board monitor, radio 1 09/2000 65528384686 $10.69
10 Countersunk screw M3X8-4.8-H-ZNFE 4 07119904046 $0.11
Use this part number for disk drive
problems.
Observe repair instructions under Topic
6552.
11 Cassette drive 1 09/2000 65529176544 $146.32
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
