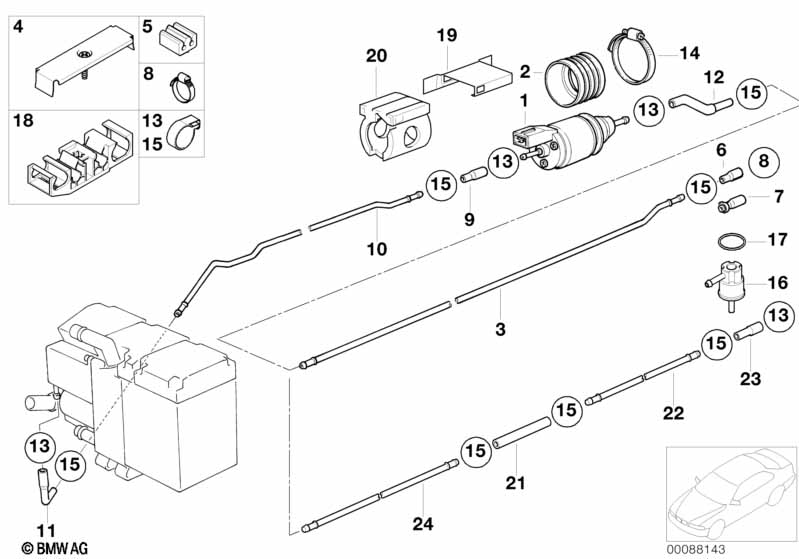

5' E39 535i Fuel supply/pump/tubing

Fuel supply/pump/tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel pump 1 64121388245 $369.40 ENDED
01 Fuel pump 1 64129143157
03 Auxiliary heating fuel pipe 1 64128363807 $10.71
04 Tubing support 3 16121182604 $1.67
05 Absorber 3 37138363915 $2.28
09 Fuel hose 1 64128391879 ENDED
09 Fuel hose 1 64126924317
10 Auxiliary heating fuel pipe 1 64128368003 $10.16
11 Fuel hose 126MM 1 03/1999 64128379561 $11.94
13 Hose clamp 66/100 4 64121378285 $1.03
14 Hose clamp 20-47 MM 1 64121392409 $4.22
15 Hose clamp 6 16131388117 $0.56
16 Fuel offtake 1 01/1997 64128386693 $37.78
18 Tubing support 3 16121182602
19 Braket fuel pump 1 11/1999 41117015154 $1.77
20 Rubber buffer 1 11/1999 64126907120 $16.96
21 Hose 1000MM 1 64121388228 ENDED
21 Fuel hose 126MM 1 64128379561 $11.94
22 Auxiliary heating fuel pipe 1 64128363809
23 Fuel hose 1 64128391879 ENDED
23 Fuel hose 1 64126924317
Notes
  • ENDED = the part has been discontinued (no longer available).
